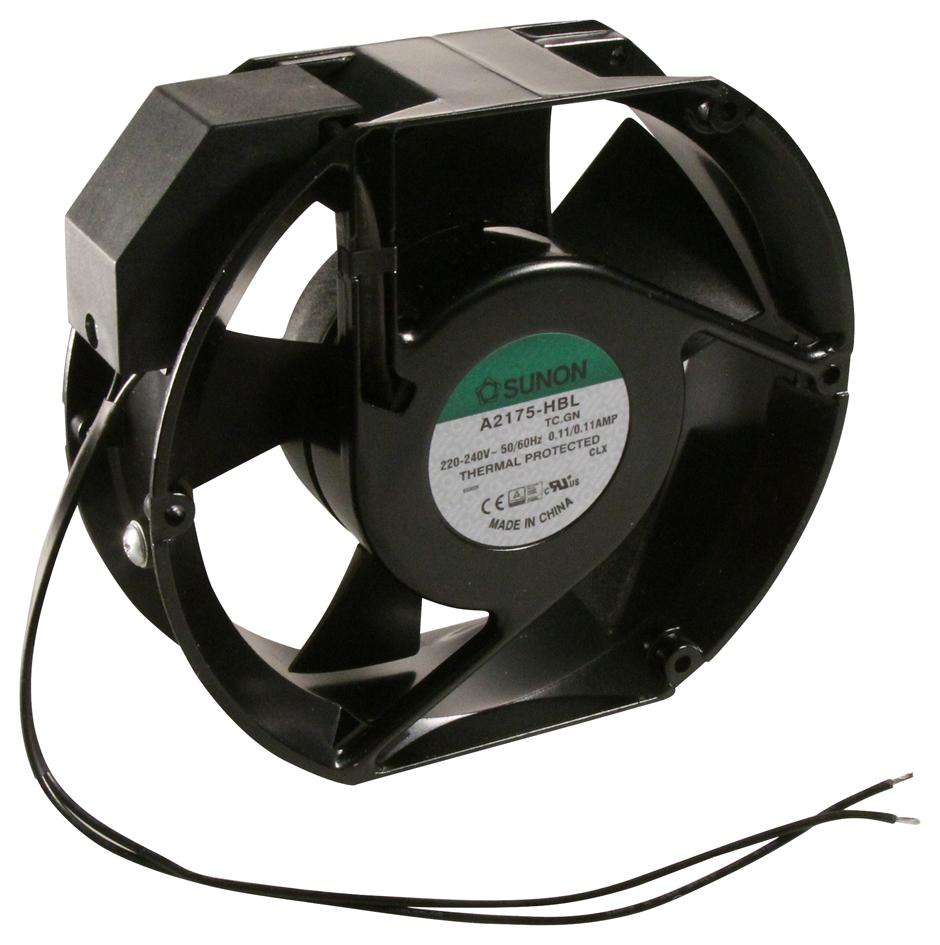

SUNON - A2175-HBL TC GN - AC Axial Fan, 220V to 240V, Rectangular with Rounded Ends, 172 mm, 51 mm, Ball Bearing, 239 CFM
- Supply Voltage: 240V
- Current Type: AC
- Fan Frame Size: 172mm
- External Depth: 51mm
- Noise Rating: 58dBA
- Flow Rate - Imperial: 239cu.ft/min
- Flow Rate - Metric: 6.69m³/min
- Bearing Type: Precision Ball
- Power Connection Type: 2 Lead Wires
- Current Rating: 110mA
- Product Range: A2175 Series
- Power Rating: -
- IP Rating: -
- SVHC: No SVHC (15-Jan-2019)
- External Height: 151mm
- External Width: 171mm
- Frame Dimensions: 151mm x 171mm x 51mm
- Power Consumption: 26W
- Speed Range Max: 3200rpm
- Weight: 908g
