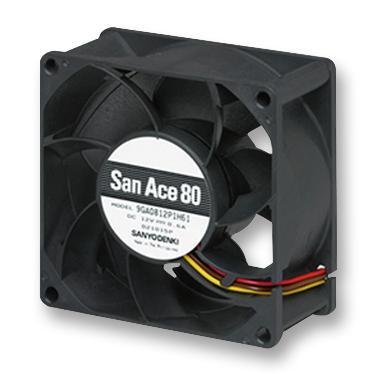

SANYO DENKI - 9GA0812P1S61P - DC Axial Fan, 12 V, Square, 80 mm, 38 mm, Ball Bearing, 91.8 CFM
- Supply Voltage: 12V
- Current Type: DC
- Fan Frame Size: 80mm
- External Depth: 38mm
- Noise Rating: 59dBA
- Flow Rate - Imperial: 91.8cu.ft/min
- Flow Rate - Metric: 2.6m³/min
- Bearing Type: Ball
- Power Connection Type: 4 Lead Wires
- Current Rating: 940mA
- Product Range: San Ace 80 GA Series
- Power Rating: -
- IP Rating: -
- External Height: 80mm
- External Width: 80mm
- Frame Dimensions: 80mm x 80mm x 38mm
- Lead Length: 300mm
- Power Consumption: 11.28W
