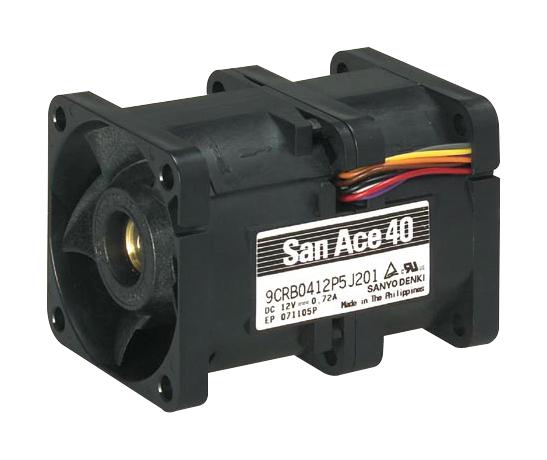

SANYO DENKI - 9CRB0412P5S201 - DC Axial Fan, 12 V, Square, 40 mm, 56 mm, Ball Bearing, 31.8 CFM
- Supply Voltage: 12VDC
- Current Type: DC
- Fan Frame Size: 40mm
- External Depth: 56mm
- Noise Rating: 68dBA
- Flow Rate - Imperial: 31.8cu.ft/min
- Flow Rate - Metric: 0.9m³/min
- Bearing Type: Ball
- Power Connection Type: 8 Lead Wires, PWM Control, Sensor Output
- Current Rating: 1.4A
- Product Range: San Ace 40 Series
- Power Rating: 16.8W
- IP Rating: -
- SVHC: No SVHC (12-Jan-2017)
