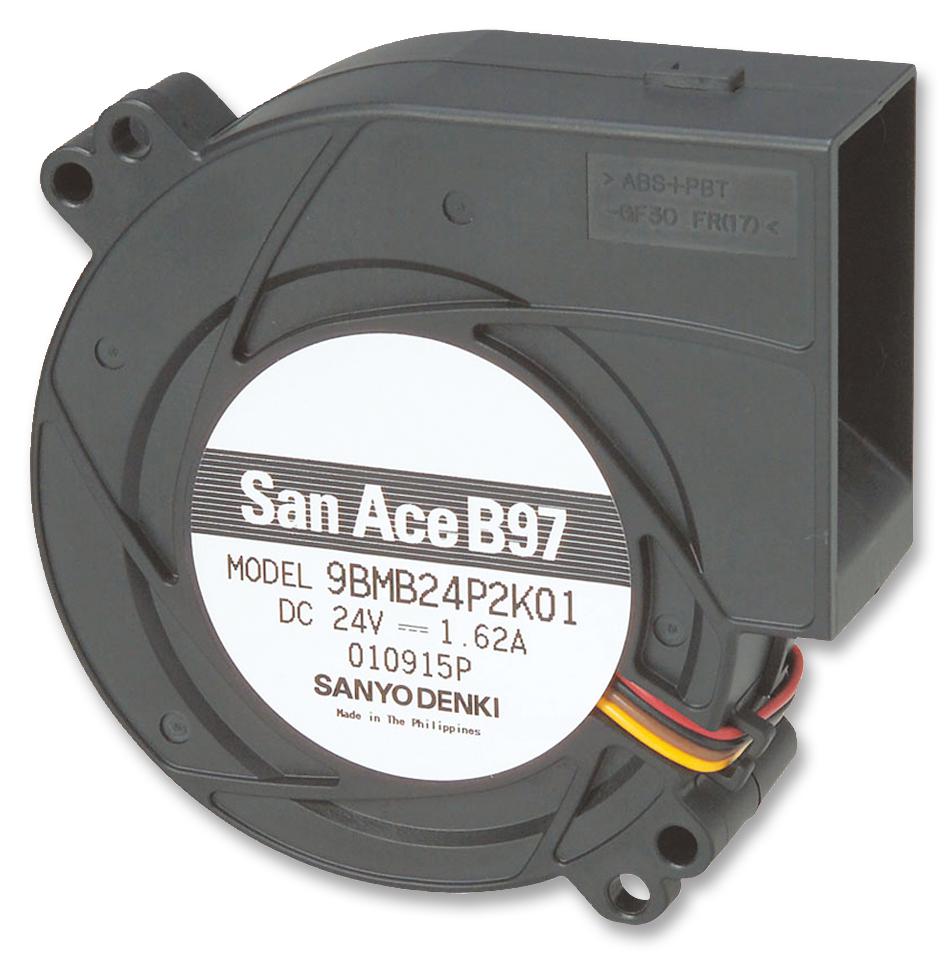

SANYO DENKI - 9BMB24P2K01 - Fan Blower, San Ace B97 Series, Centrifugal, 24 VDC, DC, 97.1 mm, 33 mm, 56.8 CFM
- Blower Type: Centrifugal
- Supply Voltage: 24V
- Current Type: DC
- Fan Frame Size: 97.1mm
- External Depth: 33mm
- Flow Rate - Metric: 1.61m³/min
- Flow Rate - Imperial: 56.8cu.ft/min
- Noise Rating: 66dBA
- Bearing Type: Ball
- Power Connection Type: 4 Lead Wires
- Power Rating: 38.88W
- Product Range: San Ace B97 Series
- IP Rating: -
- Current Rating: 1.62A
- Frame Dimensions: 95mm x 97mm x 33mm
- Speed Range Max: 6850rpm
