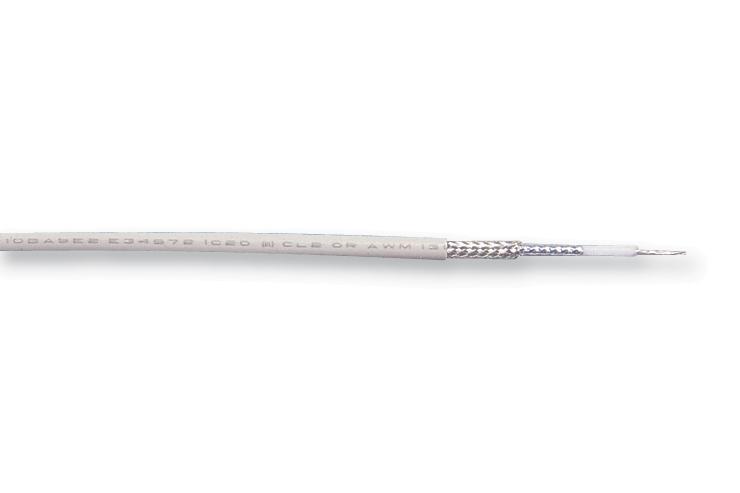

BELDEN - 9907 E4X500 - Coaxial Cable, RG58A, 20 AWG, 50 ohm, 498.69 ft, 152.4 m
- Coaxial Cable Type: RG58A
 - Wire Gauge: 20AWG
 - Conductor Area CSA: -
 - Impedance: 50ohm
 - Reel Length (Imperial): 498.69ft
 - Reel Length (Metric): 152.4m
 - Jacket Colour: Grey
 - Jacket Material: PVC
 - Conductor Material: Copper
 - No. of Max Strands x Strand Size: 19 x 0.2mm
 - External Diameter: 4.7mm
 - Product Range: -
 - SVHC: No SVHC (15-Jan-2018)
 - Alpha Type Number: 9861C EQUIVALENT
 - Approval Bodies: UL
 - Attenuation @ 100MHz: 13.8dB
 - Attenuation @ 10MHz: 4.3dB
 - Attenuation @ 1GHz: 48.6dB
 - Attenuation @ 1MHz: 1.4dB
 - Belden Type Number: 9907
 - Cable UL Style Number: UL1354
 - Capacitance per Metre: 83.3pF/m
 - Coaxial Type: RG58AU
 - Conductor Make-up: 19 / 32AWG
 - Outer Diameter: 4.7mm
 - Screen Type Primary: Aluminium/polyester/aluminium foil
 - Screen Type, Secondary: Tinned copper braid
 - Secondary Insulation Colour: Grey
 - Secondary Insulation Material: PVC
 - Velocity of Propagation (%): 80%
 - Wire Size: 20AWG
