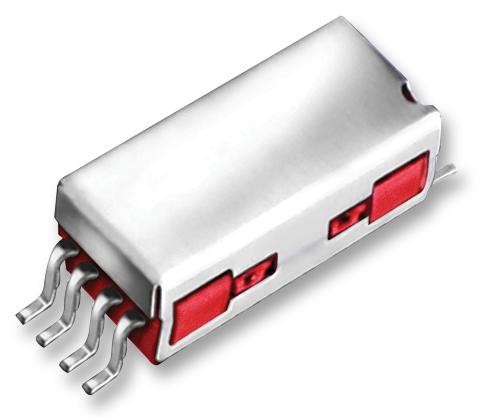

COTO TECHNOLOGY - 9814-05-00 - Reed Relay, SPST-NO, 5 VDC, 9814, Surface Mount, 150 ohm, 250 mA
- Contact Configuration: SPST-NO
- Coil Voltage: 5VDC
- Product Range: 9814 Series
- Relay Mounting: SMD
- Coil Resistance: 150ohm
- Switching Current Max: 250mA
- Switching Voltage Max: 100V
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: UL
- Coil Voltage Max: 6VDC
- Coil Voltage VDC Nom: 5V
- Contact Current DC Max: 250mA
- Contact Resistance: 125mohm
- Contact Voltage DC Max: 100V
- External Depth: 10.16mm
- External Height: 4.57mm
- External Length / Height: 5.08mm
- External Width: 4.95mm
- Insulation Resistance: 1000Gohm
- Lead Spacing: 1.02mm
- Must Actuate Voltage: 3.8VDC
- Must Release Voltage: 0.4VDC
- No. of Pins: 8Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -20°C
- Operating Time: 0.25ms
- Release Time: 0.05ms
- Row Pitch: 12.06mm
- Switch Current Max: 250mA
- Switch Power Max: 3W
- Type: Gull wing
