description

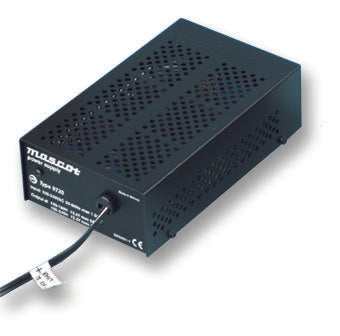

MASCOT - 9522 12V - AC/DC Enclosed Power Supply (PSU), Medical, 1 Outputs, 145 W, 12 V, 10 A
- No. of Outputs: 1Outputs
 - Output Power Max: 145W
 - Output Voltage - Output 1: 12V
 - Output Current - Output 1: 10A
 - Output Voltage - Output 2: -
 - Output Current - Output 2: -
 - Output Voltage - Output 3: -
 - Output Current - Output 3: -
 - Output Voltage - Output 4: -
 - Current, Output 4: -
 - Input Voltage VAC: 198V AC to 264V AC
 - Power Supply Output Type: Fixed
 - Product Range: -
 - SVHC: No SVHC (15-Jan-2019)
 - Applications: Medical
 - Approval Bodies: EN
 - Approvals / Standards: EN 60601
 - External Depth: 53.5mm
 - External Length / Height: 192mm
 - External Width: 109mm
 - Height: 53.5mm
 - Input Voltage AC Max: 264V
 - Input Voltage AC Min: 198V
 - Length: 192mm
 - Load Current Max: 10A
 - No. of Outputs: 1 Output
 - Output Current Max: 10A
 - Power Rating: 135W
 - Power Supply Type: Switch Mode
 - Supply Voltage: 264V
 - Supply Voltage Max: 264V
 - Supply Voltage Min: 198V
 - Supply Voltage Typ: 230V AC
 - Width: 109mm
