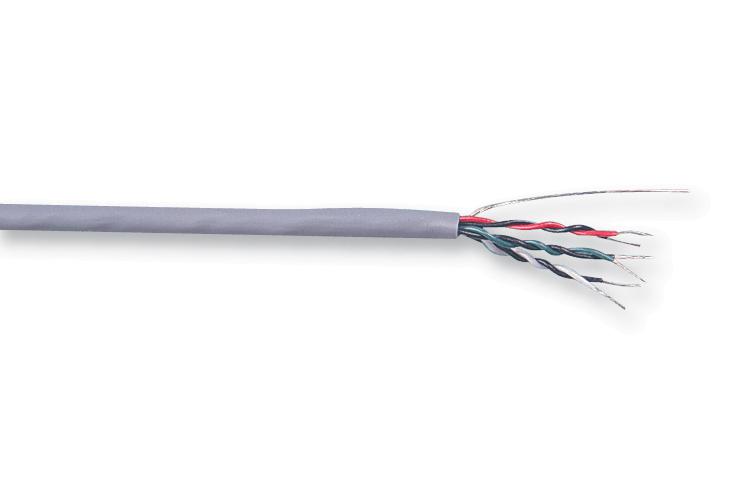

BELDEN - 9503 060U100 - Multipair Cable, Computer, Screened, 3 Pair, 24 AWG, 0.2 mm², 98.43 ft, 30 m
- Cable Shielding: Screened
- No. of Pairs: 3 Pair
- Wire Gauge: 24AWG
- Conductor Area CSA: 0.2mm²
- Reel Length (Imperial): 98.43ft
- Reel Length (Metric): 30m
- Jacket Colour: Chrome
- No. of Max Strands x Strand Size: 7 x 0.2mm
- Voltage Rating: 300V
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- External Diameter: 5.89mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Alpha Type Number: 5473C EQUIVALENT
- Approval Bodies: UL
- Belden Type Number: 9503
- Cable Type: Foil Shield
- Cable UL Style Number: UL2464
- Complex Cable Make-Up: 6 x 7/32
- Conductor Make-up: 7 / 32AWG
- Core - Core Capacitance: 98pF/m
- Core-Screen Capacitance: 164pF/m
- Current Rating: 1.76A
- Drain Wire Type: Tinned Copper
- No. of Cores: 6Core
- Outer Diameter: 5.89mm
- Primary Conductor Resistance: 78.7ohm/km
- Screen Resistance: 55.8ohm/km
- Screen Type Primary: Aluminum polyester
- Secondary Insulation Colour: Chrome
- Secondary Insulation Material: PVC
- Wire Size: 24AWG
