description

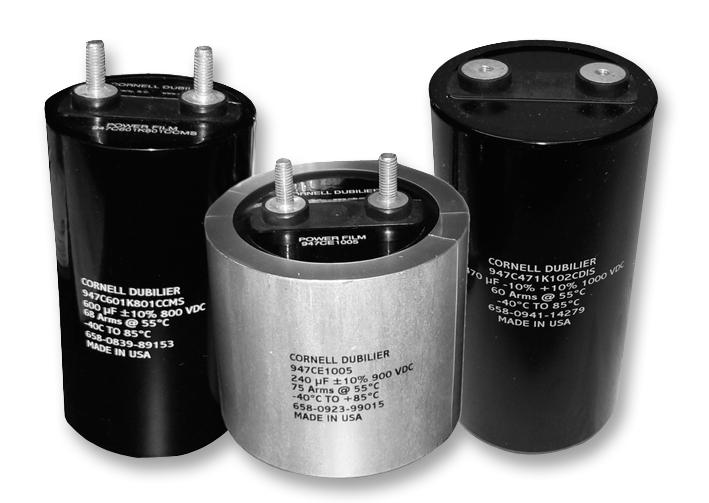

CORNELL DUBILIER - 947C331K112BCHS - Power Film Capacitor, Metallized PP, Can, 330 µF, ± 10%, DC Link, Stud Mount - M12
- Capacitance: 330µF
- Voltage Rating: 1.1kV
- Capacitor Dielectric Type: PP (Polypropylene)
- Capacitance Tolerance: ± 10%
- Product Range: 947C Series
- Capacitor Case Style: Can
- Capacitor Terminals: Screw
- Lead Spacing: 45mm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 10%
- Capacitor Mounting: Panel
- ESR: 0.003ohm
- No. of Pins: 2Pins
- Operating Temperature Range: -40°C to +85°C
- Voltage Rating V DC: 1.1kV
