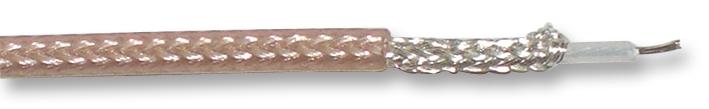

ALPHA WIRE - 9178B CL005 - Coaxial Cable, RG178B/U, 30 AWG, 0.06 mm², 50 ohm, 100 ft, 30.5 m
- Coaxial Cable Type: RG178B
- Wire Gauge: 30AWG
- Conductor Area CSA: 0.06mm²
- Impedance: 50ohm
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- Jacket Colour: Natural
- Jacket Material: FEP
- Conductor Material: Tinned Copper
- No. of Max Strands x Strand Size: 7 x 0.1mm
- External Diameter: 1.8mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Attenuation @ 100MHz: 13.3dB
- Attenuation @ 10MHz: 5.3dB
- Attenuation @ 1GHz: 45dB
- Attenuation @ 200MHz: 20dB
- Attenuation @ 400MHz: 27.5dB
- Attenuation @ 50MHz: 10dB
- Capacitance per Metre: 93.1pF/m
- Coaxial Type: RG178B/U
- Conductor Make-up: 7/0.1mm
- Dielectric Insulation Diameter: 0.86mm
- Dielectric Material: Tetrafluoroethylene
- Outer Diameter: 1.8mm
- Primary Screen material: Silver Coated Copper Braid
- Secondary Insulation Colour: Natural
- Secondary Insulation Material: Fluorinated Ethylene-Propylene
- Wire Size: 30AWG
