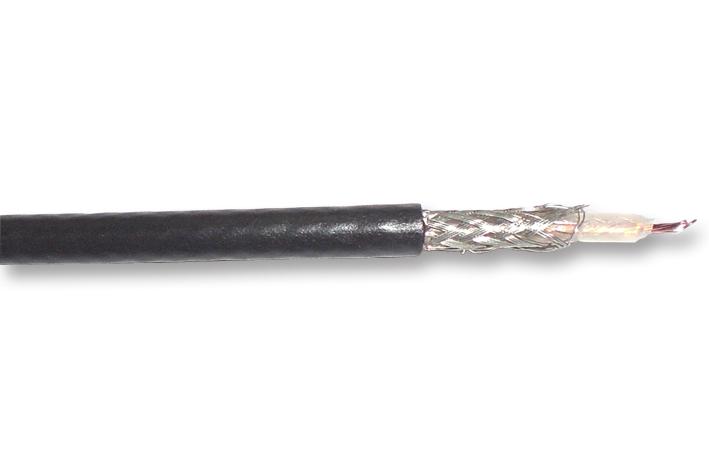

ALPHA WIRE - 9174 BK001 - Coaxial Cable, RG174, 26 AWG, 0.14 mm², 50 ohm, 1000 ft, 304.8 m
- Coaxial Cable Type: RG174
- Wire Gauge: 26AWG
- Conductor Area CSA: 0.14mm²
- Impedance: 50ohm
- Reel Length (Imperial): 1000ft
- Reel Length (Metric): 304.8m
- Jacket Colour: Black
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- No. of Max Strands x Strand Size: 7 x 34AWG
- External Diameter: 2.54mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Attenuation @ 100MHz: 2.8dB
- Attenuation @ 10MHz: 0.9dB
- Attenuation @ 1GHz: 8.5dB
- Attenuation @ 200MHz: 3.7dB
- Attenuation @ 400MHz: 17.5dB
- Attenuation @ 50MHz: 1.9dB
- Capacitance per Metre: 102pF/m
- Coaxial Type: RG174/U
- Conductor Make-up: 7 / 0.16mm
- Dielectric Insulation Diameter: 1.52mm
- Dielectric Material: Solid Polyethylene
- Outer Diameter: 2.54mm
- Primary Screen material: Tinned Copper Braid
- Secondary Insulation Colour: Black
- Secondary Insulation Material: PVC
- Wire Size: 26AWG
