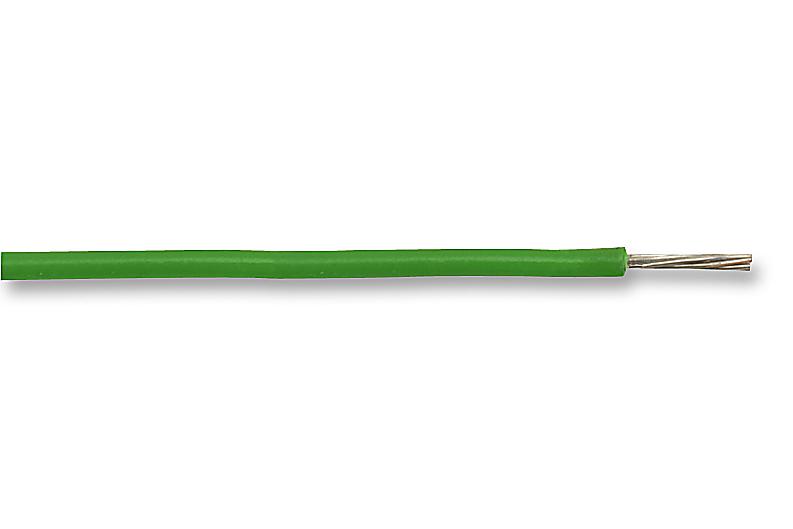

BELDEN - 8916 189100 - Wire, Stranded, Hook Up, UL1015, PVC, Green, Yellow, 14 AWG, 100 ft, 30.5 m
- Jacket Material: PVC
- Jacket Colour: Green, Yellow
- Wire Gauge: 14AWG
- Conductor Area CSA: -
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- No. of Max Strands x Strand Size: 41 x 30AWG
- Voltage Rating: 600Vrms
- Conductor Material: Tinned Copper
- External Diameter: 3.51mm
- Approval Specification: CSA AWM I A/B, CSA TEW, UL 1015
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
