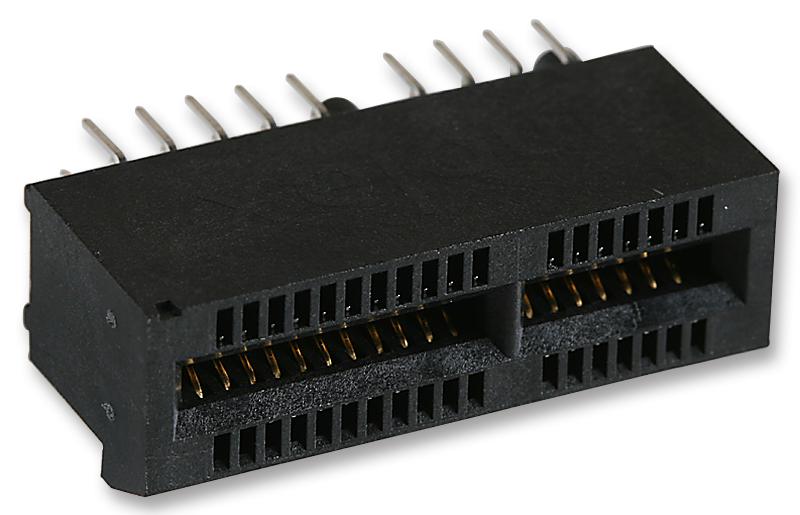

MOLEX - 87715-9305 - Card Edge Connector, Dual Side, 1.57 mm, 164 Contacts, Through Hole Mount, Straight, Solder
- Card Edge Connector Type: Dual Side
- Card Thickness: 1.57mm
- No. of Contacts: 164 Contacts
- Connector Mounting: Through Hole Mount
- Connector Body Orientation: Straight
- Contact Termination Type: Solder
- Contact Material: Phosphor Bronze
- Contact Plating - Mating Side: 15µ" Gold Plated Contacts
- Connector Body Material: Thermoplastic Body
- Product Range: 87715 Series
- SVHC: No SVHC (27-Jun-2018)
- Card Edge / Backplane Connector Type: Card Edge
- Connector Type: PCIe
- Contact Plating: Gold Plated Contacts
- Gender: Receptacle
- No. of Contacts: 164Contacts
- No. of Rows: 2Rows
- Pitch Spacing: 1mm
- Row Pitch: 2mm
