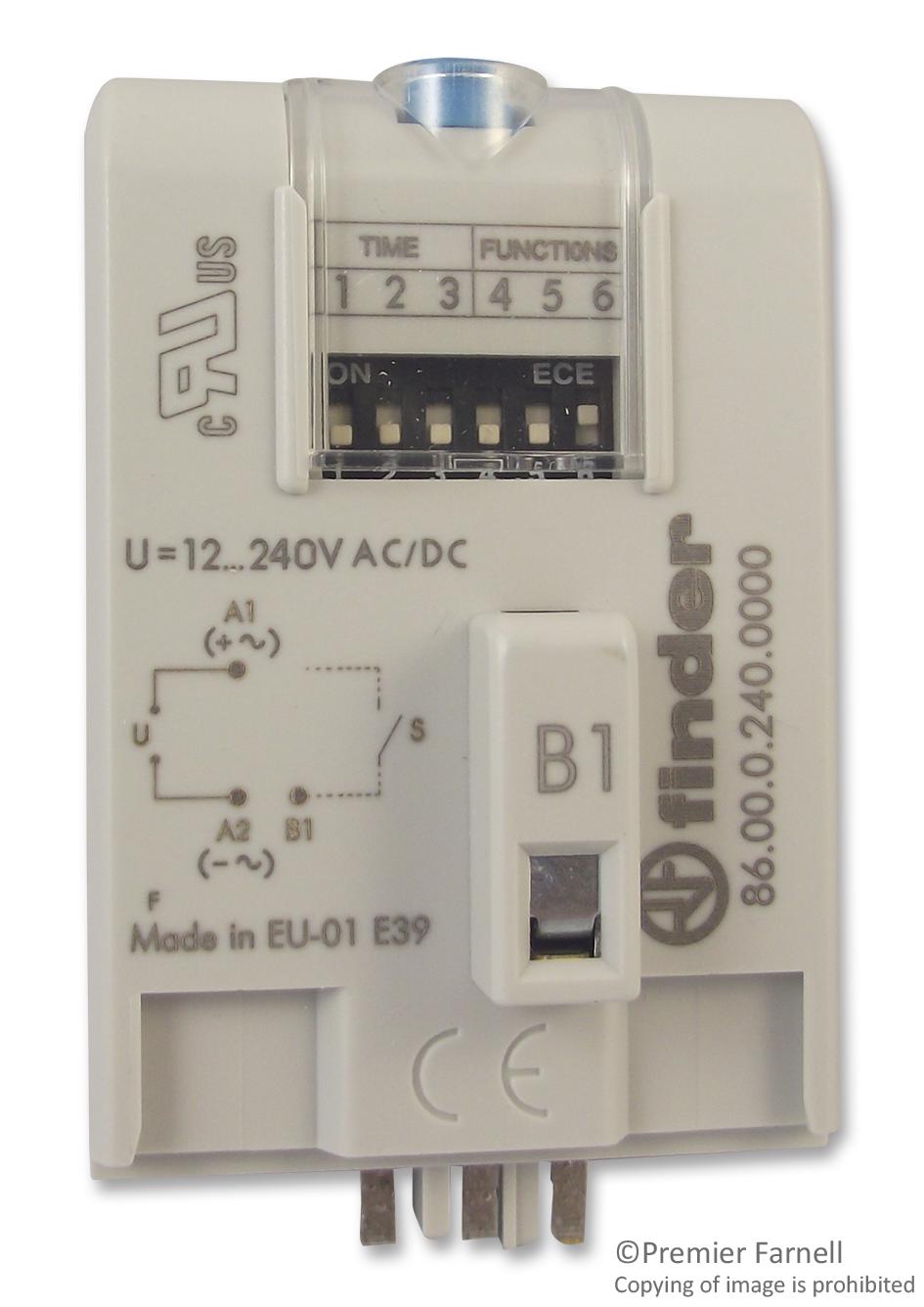

FINDER - 86.00.0.240.0000 - Analogue Timer, Module, 86 Series, Multifunction, 1 Ranges, 0.05 s, 100 h
- Product Range: 86 Series
 - Timer Functions: Multifunction
 - No. of Timing Ranges: 1Ranges
 - Time Min: 0.05s
 - Time Max: 100h
 - Timer Output: -
 - Supply Voltage Max: 240VAC
 - Current Rating Nom: -
 - Connection / Termination: Plug-In
 - Panel Cutout Height: -
 - Panel Cutout Width: -
 - SVHC: No SVHC (15-Jan-2019)
 - Accuracy %: 5%
 - Adjustment Type: Pushbutton
 - Coil Voltage VAC Nom: 240V
 - Contact Configuration: SPST-NO
 - Contact Current AC Max: 8A
 - Contact Voltage AC Max: 250V
 - Delay Time Range: 0.05s to 100h
 - External Depth: 16.8mm
 - External Length / Height: 54mm
 - External Width: 38mm
 - IP / NEMA Rating: IP20
 - Nom Input Voltage: 240V
 - Operating Temperature Max: 50°C
 - Operating Temperature Min: -20°C
 - Power Rating: 1.2W
 - Relay Mounting: Socket
 - Relay Terminals: Quick Connect
 - Repeat Accuracy +: 1%
 - Repeat Accuracy -: 1%
 - Supply Voltage AC Max: 240VAC
 - Supply Voltage AC Min: 12VAC
 - Supply Voltage DC Max: 240VDC
 - Supply Voltage DC Min: 12VDC
 - Switch Current Max: 8A
 - Switching Current Max: 8A
