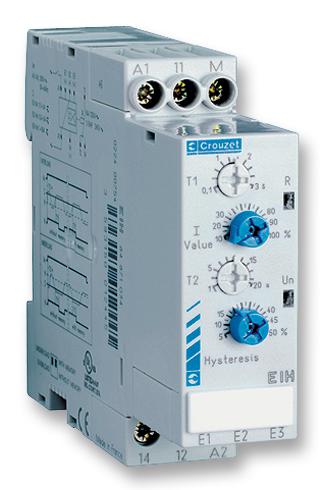

CROUZET - 84871034 - Current Monitoring Relay, EI, SPDT, 8 A, DIN Rail, Screw
- Product Range: EI Series
- Contact Configuration: SPDT
- Contact Current: 8A
- Relay Mounting: DIN Rail
- Contact Voltage VAC: -
- Relay Terminals: Screw
- Contact Voltage VDC: -
- Supply Voltage Max: 230VAC
- Current Monitoring Range Min: 100mA
- Current Monitoring Range Max: 10A
- Power Consumption: 3VA
- SVHC: No SVHC (15-Jun-2015)
- Coil Voltage VAC Nom: 230V
- Contact Current AC Max: 8A
- External Depth: 100mm
- External Length / Height: 99.3mm
- External Width: 22.5mm
- Load Current: 0.1A
- Nom Input Voltage: 230VDC
- Operating Temperature Max: 60°C
- Operating Temperature Min: -20°C
- Supply Current Max: 8A
- Supply Voltage: 230V
- Switch Current Max: 10A
- Switching Current Max: 10A
