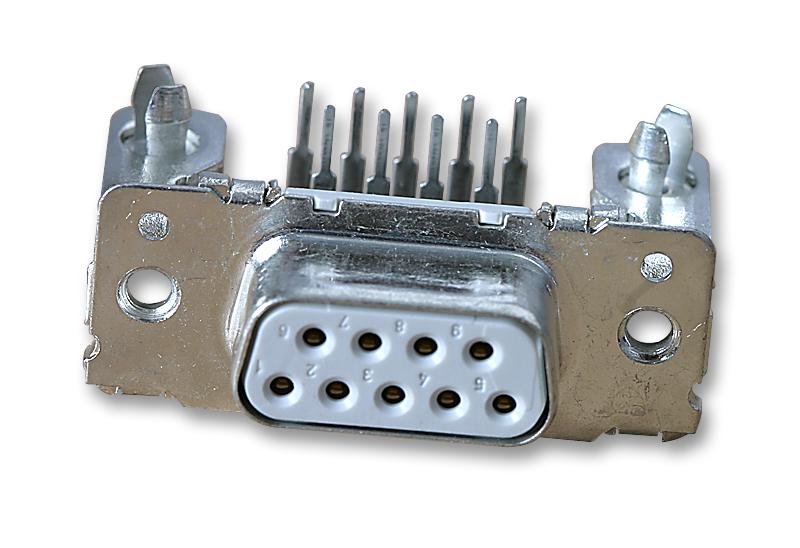

AMP - TE CONNECTIVITY - 8-1393480-1 - D Sub Connector, DB9, Standard, Receptacle, AMPLIMITE HDP-20, 9 Contacts, DE, Solder
- No. of Contacts: 9Contacts
- Gender: Receptacle
- Contact Termination Type: Solder
- D Sub Shell Size: DE
- Product Range: AMPLIMITE HDP-20 Series
- Connector Body Material: Steel Body
- Contact Material: Copper Alloy
- Contact Plating: Gold Plated Contacts
- SVHC: Lead (15-Jan-2019)
- Body Plating: Tin
- Colour: Black
- Connector Mounting: Through Hole Mount Right Angle
- Contact Termination: Solder
- D Sub Connector Type: Standard
- DC Current Max: 2.2A
- Dielectric Strength VDC: 1000V
- Flammability Rating: UL94V-0
- Insulation Resistance: 5000Mohm
- Material: Steel
- Operating Temperature Max: 125°C
- Operating Temperature Min: 55°C
- Termination Method: Through Hole
