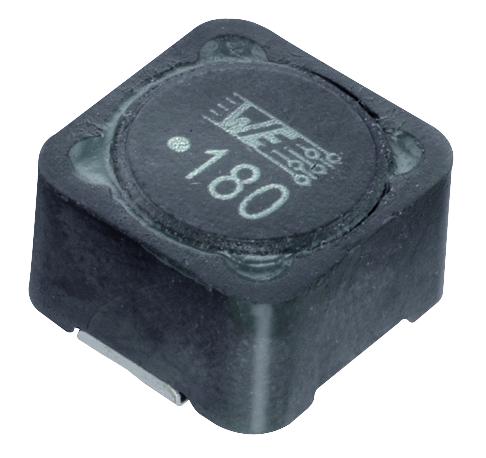

WURTH ELEKTRONIK - 7687779471 - Power Inductor (SMD), 470 µH, 350 mA, Shielded, 370 mA, WE-PDHV
- Inductance: 470µH
- RMS Current (Irms): 350mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 370mA
- Product Range: WE-PDHV Series
- Power Inductor Case: 7.3mm x 7.3mm x 4.5mm
- DC Resistance Max: 3.2ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Self Resonant Frequency Min: 3MHz
