7687709471 Inductor, 470UH, 0.97A, 20%, Pwr, 1.9MHZ Wurth Elektronik

WURTH ELEKTRONIKUGS :7687709471 Code de commande:2336068

Prix:
Prix ​​promotionnel€6,44

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (130 unité)

Documents et téléchargements

description

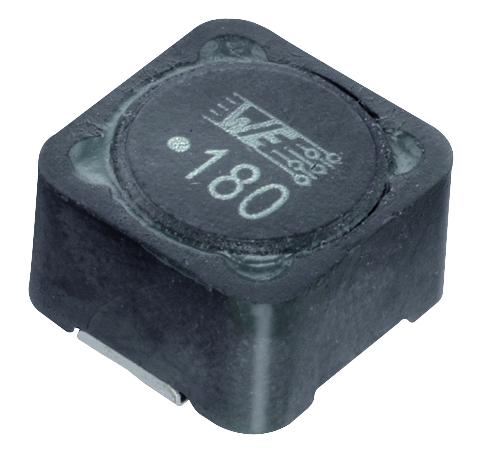

WURTH ELEKTRONIK - 7687709471 - Power Inductor (SMD), 470 µH, 970 mA, Shielded, 1.4 A, WE-PDHV

  • Inductance: 470µH
  • RMS Current (Irms): 970mA
  • Inductor Construction: Shielded
  • Saturation Current (Isat): 1.4A
  • Product Range: WE-PDHV Series
  • Power Inductor Case: 12mm x 12mm x 10.5mm
  • DC Resistance Max: 0.8ohm
  • Inductance Tolerance: ± 20%
  • SVHC: No SVHC (15-Jan-2019)
  • Self Resonant Frequency Min: 1.9MHz
