7687709222 Inductor, 2200UH, 0.43A, 20%, 0.8MHz Wurth Elektronik

WURTH ELEKTRONIKUGS :7687709222 Code de commande:2336065

Prix:
Prix ​​promotionnel€5,35

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (189 unité)

Documents et téléchargements

description

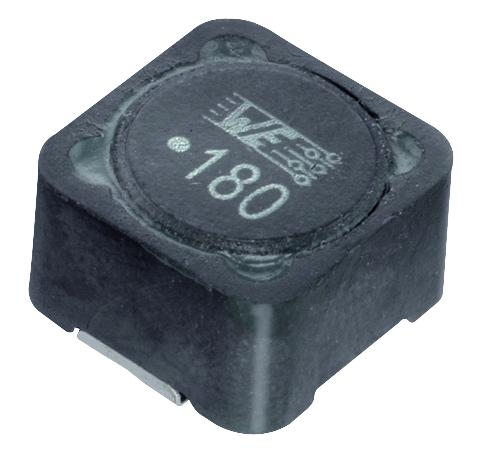

WURTH ELEKTRONIK - 7687709222 - Power Inductor (SMD), 2.2 mH, 430 mA, Shielded, 650 mA, WE-PDHV

  • Inductance: 2.2mH
  • RMS Current (Irms): 430mA
  • Inductor Construction: Shielded
  • Saturation Current (Isat): 650mA
  • Product Range: WE-PDHV Series
  • Power Inductor Case: 12mm x 12mm x 10.5mm
  • DC Resistance Max: 3.7ohm
  • Inductance Tolerance: ± 20%
  • SVHC: No SVHC (15-Jan-2019)
  • Self Resonant Frequency Min: 800kHz
