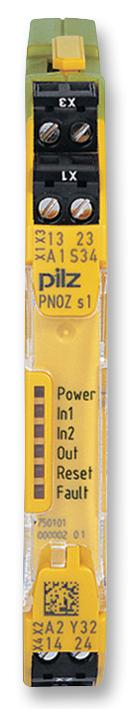

PILZ - 750101 - Safety Relay, 24 VDC, DPST-NO, PNOZ s1, DIN Rail, 3 A, Screw
- Coil Voltage: 24VDC
 - Contact Configuration: DPST-NO
 - Product Range: PNOZ s1 Series
 - Relay Mounting: DIN Rail
 - Contact Current: 3A
 - Relay Terminals: Screw
 - Contact Voltage AC Nom: 240V
 - Contact Voltage DC Nom: 24V
 - Contact Material: Silver Tin Oxide
 - IP Rating: IP20, IP40, IP54
 - SVHC: No SVHC (15-Jan-2019)
 - Approval Bodies: BG, CCC, GOST, UL
 - Approval Category: EN 954-1, EN 60204-1, EN 62061, VDE 0113-1
 - Approvals / Standards: EN 60204, EN 60947, EN 62061, IEC 61511, ISO 13849
 - Coil Voltage VDC Nom: 24V
 - Contact Current Max: 3A
 - External Depth: 120mm
 - External Height: 98mm
 - External Length / Height: 98mm
 - External Width: 12.5mm
 - Operating Temperature Max: 55°C
 - Operating Temperature Min: -10°C
 - Performance Level: PL c
 - Relay Type: Safety
 - Safety Category: Level 3
 - Safety Integrity Level: SIL2, SIL CL2
 - Supply Voltage V DC: 24VDC
 - Switch Current Max: 3A
 - Switching Current Max: 3A
 - Type: Safety monitoring
