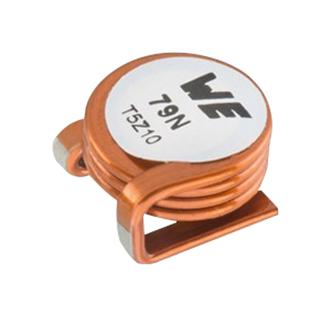

WURTH ELEKTRONIK - 7449152090 - Air Core Inductor, 90 nH, 30 A, WE-ACHC, ± 20%, 0.00121 ohm, 359 MHz
- Inductance: 90nH
- RMS Current (Irms): 30A
- Product Range: WE-ACHC Series
- Inductance Tolerance: ± 20%
- Air Core Inductor Case: 11.5mm x 12mm x 10.4mm
- DC Resistance Max: 0.00121ohm
- Self Resonant Frequency Min: 359MHz
- SVHC: No SVHC (15-Jan-2019)
