744787101 Inductor, 100UH, 0.95A, 30%, Pwr, 5MHz Wurth Elektronik

WURTH ELEKTRONIKUGS :744787101 Code de commande:2336048

Prix:
Prix ​​promotionnel€3,41

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (212 unité)

Documents et téléchargements

description

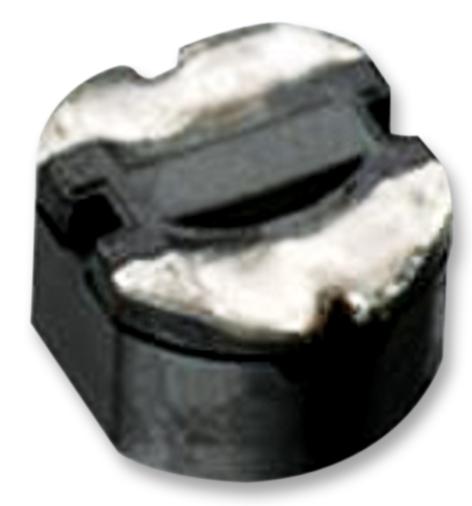

WURTH ELEKTRONIK - 744787101 - Power Inductor (SMD), 100 µH, 950 mA, Shielded, 870 mA, WE-PD2SR

  • Inductance: 100µH
  • RMS Current (Irms): 950mA
  • Inductor Construction: Shielded
  • Saturation Current (Isat): 870mA
  • Product Range: WE-PD2SR Series
  • Power Inductor Case: 7.8mm x 7mm x 5mm
  • DC Resistance Max: 0.467ohm
  • Inductance Tolerance: ± 20%
  • SVHC: No SVHC (15-Jan-2019)
  • Self Resonant Frequency Min: 5MHz
