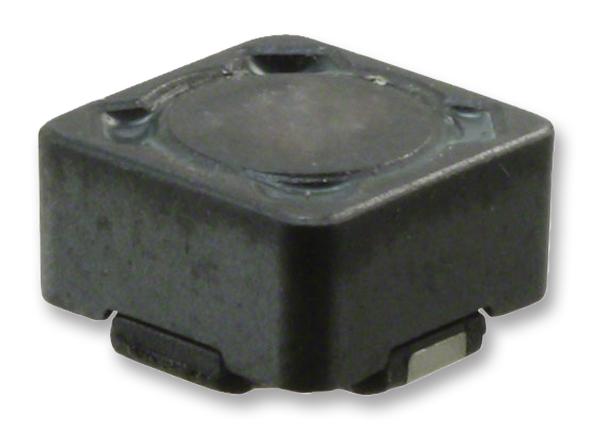

WURTH ELEKTRONIK - 744778926 - Power Inductor (SMD), 680 µH, 220 mA, Shielded, 220 mA, WE-PD, 7.3mm x 7.3mm x 3.2mm
- Inductance: 680µH
- RMS Current (Irms): 220mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 220mA
- Product Range: WE-PD Series
- Power Inductor Case: 7.3mm x 7.3mm x 3.2mm
- DC Resistance Max: 5.73ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Impedance: 4.5ohm
- Inductor Type: Power
- Resonant Frequency: 3MHz
