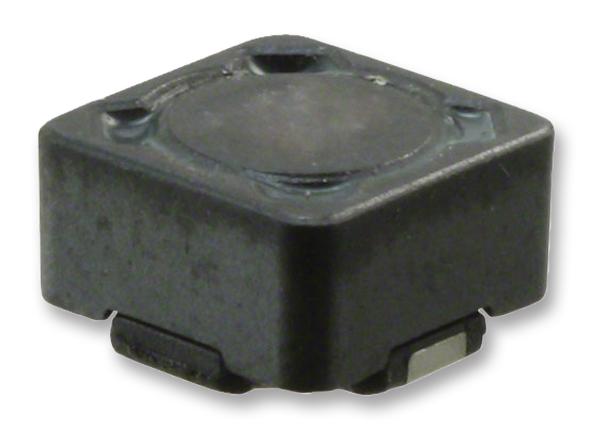

WURTH ELEKTRONIK - 7447789168 - Power Inductor (SMD), 68 µH, 740 mA, Shielded, 840 mA, WE-PD, 7.3mm x 7.3mm x 3.2mm
- Inductance: 68µH
- RMS Current (Irms): 740mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 840mA
- Product Range: WE-PD Series
- Power Inductor Case: 7.3mm x 7.3mm x 3.2mm
- DC Resistance Max: 0.52ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Impedance: 0.427ohm
- Inductor Type: Power
- Resonant Frequency: 10.2MHz
