description

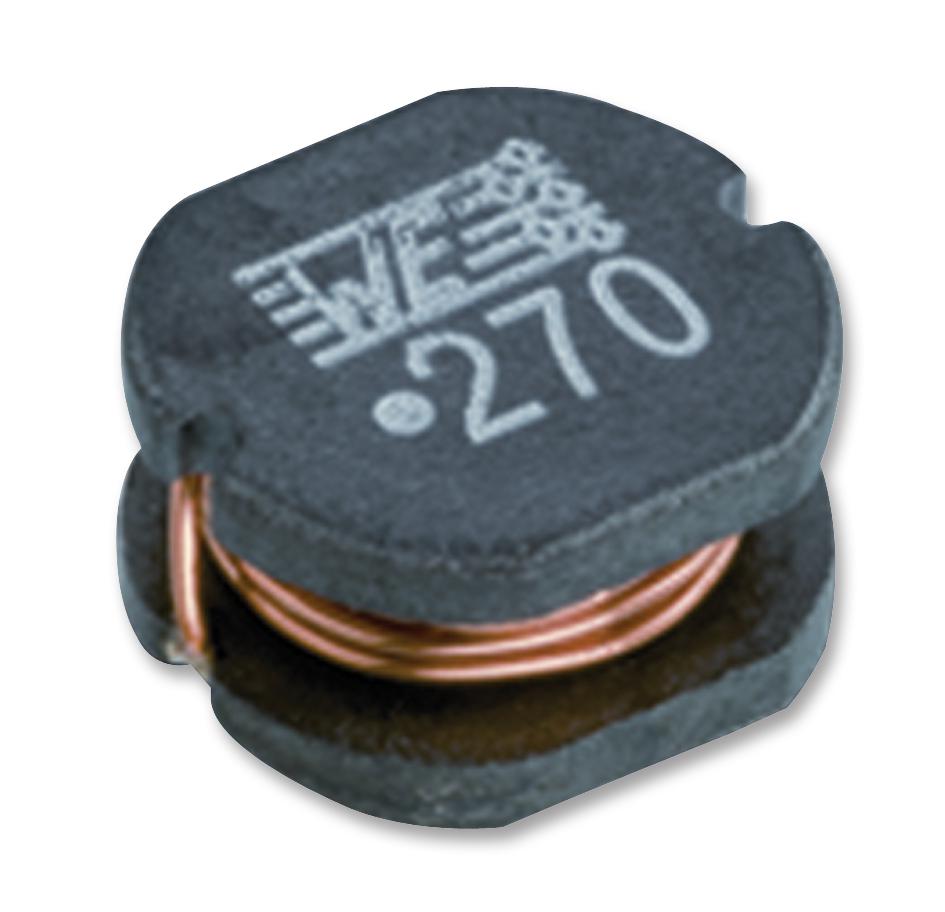

WURTH ELEKTRONIK - 744773127 - Power Inductor (SMD), 27 µH, 940 mA, Unshielded, 1 A, WE-PD2
- Inductance: 27µH
- RMS Current (Irms): 940mA
- Inductor Construction: Unshielded
- Saturation Current (Isat): 1A
- Product Range: WE-PD2 Series
- Power Inductor Case: 4.5mm x 4mm x 3.2mm
- DC Resistance Max: 0.522ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2019)
- Self Resonant Frequency Min: 17MHz
