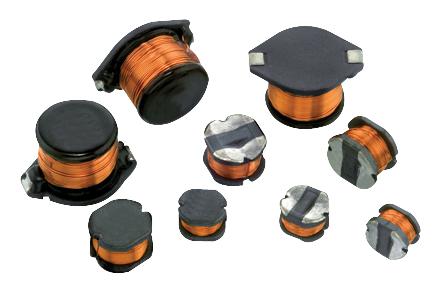

WURTH ELEKTRONIK - 74458308 - Wirewound Inductor, 8 mH, 8 ohm, 410 kHz, 350 mA, WE-ASI
- Inductance: 8mH
- RMS Current (Irms): 350mA
- Inductor Construction: Wirewound
- Saturation Current (Isat): 600mA
- Product Range: WE-ASI Series
- Power Inductor Case: 18.54mm x 15.24mm x 12mm
- DC Resistance Max: 8ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2019)
- Lead Spacing: 12.45mm
- No. of Pins: 2Pins
- Resonant Frequency: 410MHz
- Self Resonant Frequency Min: 410kHz
