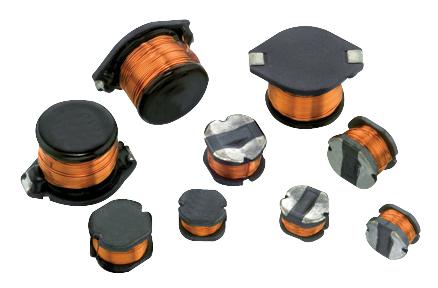

WURTH ELEKTRONIK - 74458306 - Wirewound Inductor, 6 mH, 6 ohm, 470 kHz, 400 mA, WE-ASI
- Inductance: 6mH
- RMS Current (Irms): 400mA
- Inductor Construction: Wirewound
- Saturation Current (Isat): 700mA
- Product Range: WE-ASI Series
- Power Inductor Case: 18.54mm x 15.24mm x 12mm
- DC Resistance Max: 6ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2019)
- Lead Spacing: 12.45mm
- No. of Pins: 2Pins
- Resonant Frequency: 470MHz
- Self Resonant Frequency Min: 470kHz
