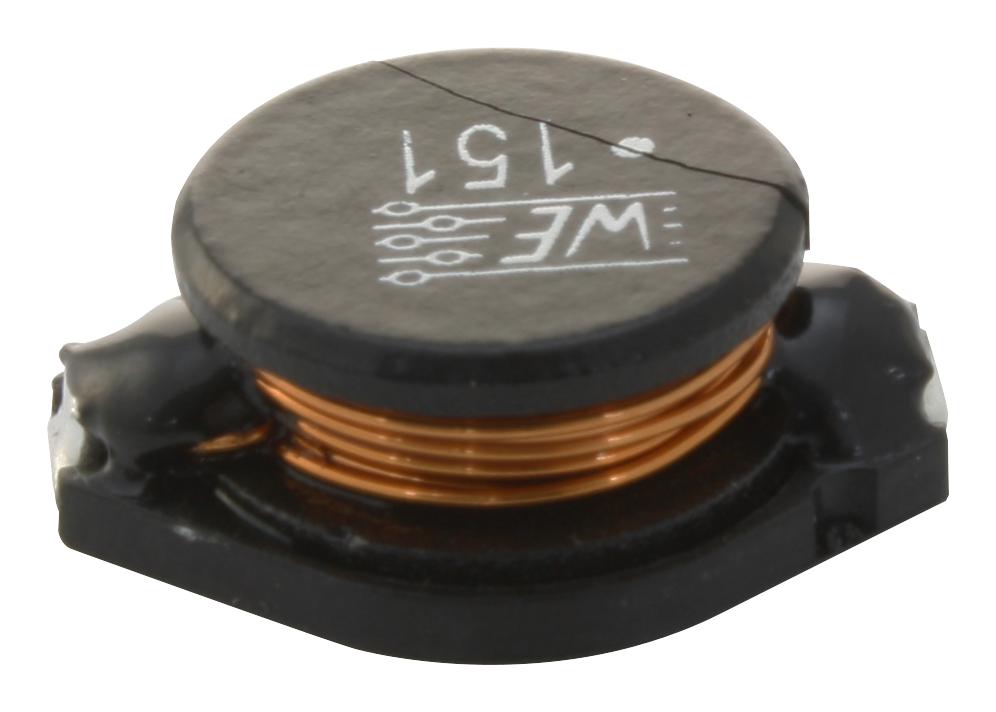

WURTH ELEKTRONIK - 74458215 - Power Inductor (SMD), 150 µH, 1.5 A, Unshielded, 2.7 A, WE-PD4, 18.54mm x 15.24mm x 7.11mm
- Inductance: 150µH
- RMS Current (Irms): 1.5A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 2.7A
- Product Range: WE-PD4 Series
- Power Inductor Case: 18.54mm x 15.24mm x 7.11mm
- DC Resistance Max: 0.25ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Inductor Type: Power
- No. of Pins: 2Pins
- Resonant Frequency: 4MHz
- Self Resonant Frequency Min: 4MHz
