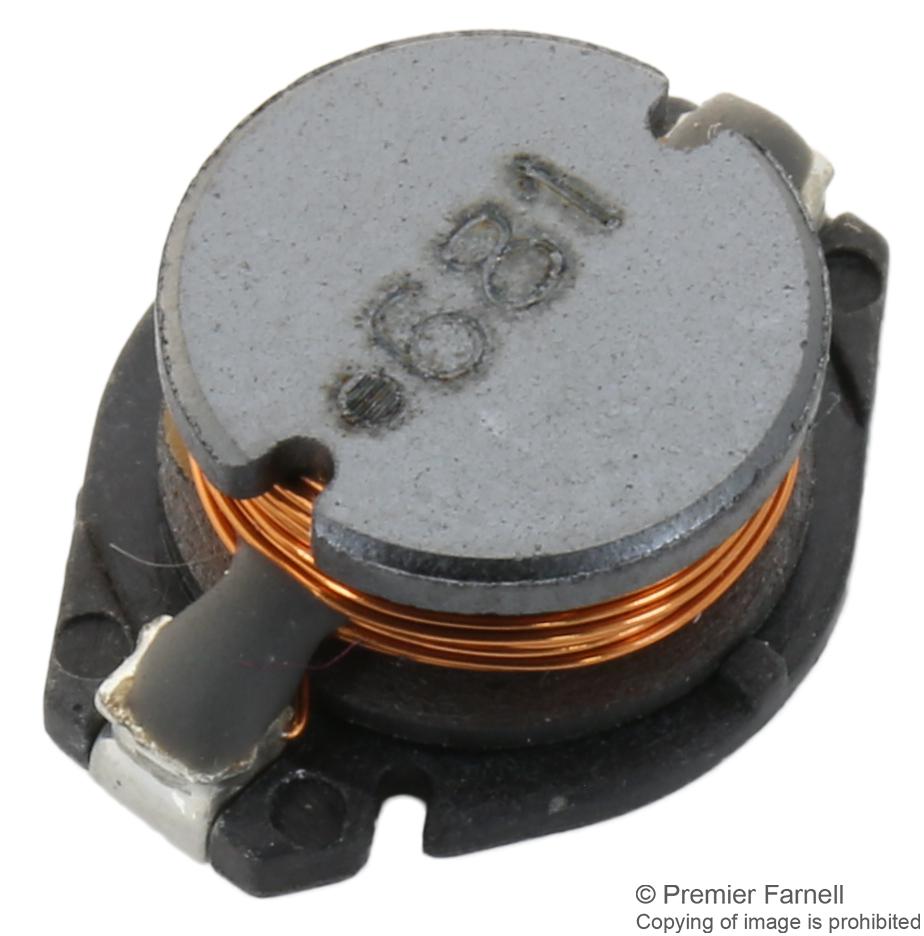

WURTH ELEKTRONIK - 74456268 - Power Inductor (SMD), 680 µH, 500 mA, Unshielded, 550 mA, WE-PD4, 12.7mm x 10mm x 5mm
- Inductance: 680µH
- RMS Current (Irms): 500mA
- Inductor Construction: Unshielded
- Saturation Current (Isat): 550mA
- Product Range: WE-PD4 Series
- Power Inductor Case: 12.7mm x 10mm x 5mm
- DC Resistance Max: 2.6ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2019)
- Inductor Type: Power
- No. of Pins: 2Pins
- Resonant Frequency: 3MHz
- Self Resonant Frequency Min: 3MHz
