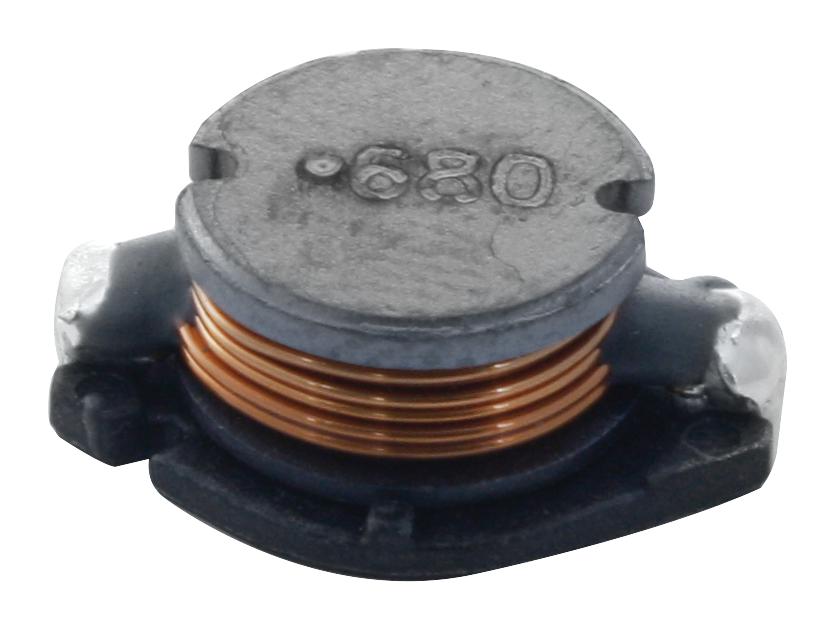

WURTH ELEKTRONIK - 74456168 - Power Inductor (SMD), 68 µH, 1.6 A, Unshielded, 1.7 A, WE-PD4
- Inductance: 68µH
- RMS Current (Irms): 1.6A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 1.7A
- Product Range: WE-PD4 Series
- Power Inductor Case: 12.7mm x 10mm x 5mm
- DC Resistance Max: 0.24ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2019)
- Inductor Type: Power
- No. of Pins: 2Pins
- Resonant Frequency: 10MHz
- Self Resonant Frequency Min: 10MHz
