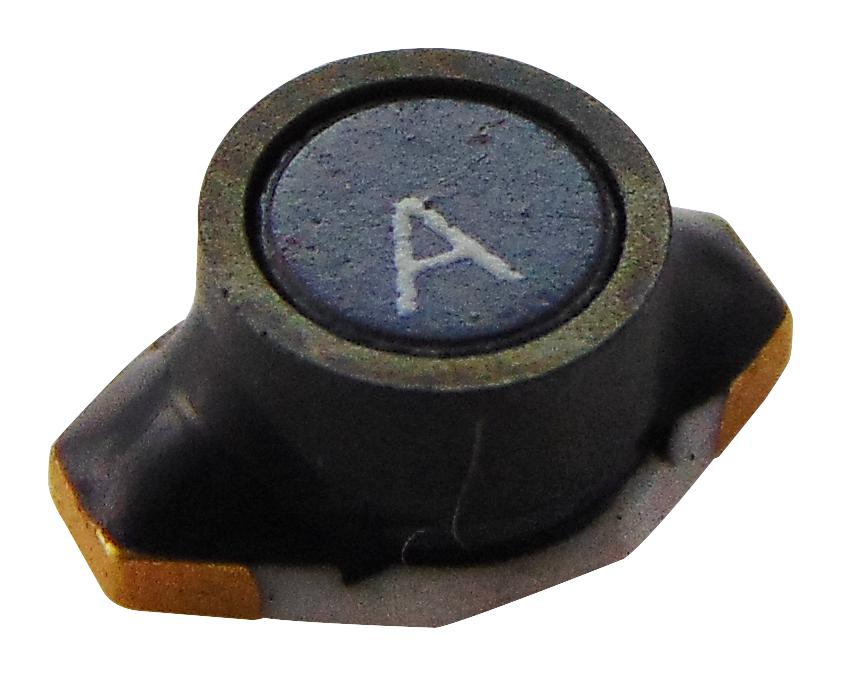

WURTH ELEKTRONIK - 74453115 - Power Inductor (SMD), 15 µH, 1 A, Shielded, 2.3 A, WE-PD3, 12.7mm x 10.3mm x 2.7mm
- Inductance: 15µH
- RMS Current (Irms): 1A
- Inductor Construction: Shielded
- Saturation Current (Isat): 2.3A
- Product Range: WE-PD3 Series
- Power Inductor Case: 12.7mm x 10.3mm x 2.7mm
- DC Resistance Max: 0.2ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Inductor Type: Power
- No. of Pins: 2Pins
- Resonant Frequency: 29MHz
- Self Resonant Frequency Min: 29MHz
