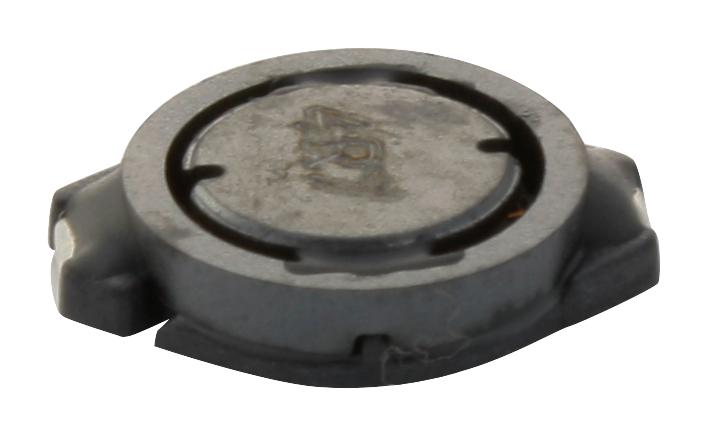

WURTH ELEKTRONIK - 7445304 - Power Inductor (SMD), 4.7 µH, 1.9 A, Shielded, 3.6 A, WE-PD3, 12.7mm x 10.3mm x 2.7mm
- Inductance: 4.7µH
- RMS Current (Irms): 1.9A
- Inductor Construction: Shielded
- Saturation Current (Isat): 3.6A
- Product Range: WE-PD3 Series
- Power Inductor Case: 12.7mm x 10.3mm x 2.7mm
- DC Resistance Max: 0.078ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Inductor Type: Power
- No. of Pins: 2Pins
- Resonant Frequency: 43MHz
- Self Resonant Frequency Min: 43MHz
