7443330820 Inductor, 8.2UH, 11.5A, 20% Wurth Elektronik

WURTH ELEKTRONIKUGS :7443330820 Code de commande:1848253

Prix:
Prix ​​promotionnel€4,25

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (240 unité)

Documents et téléchargements

description

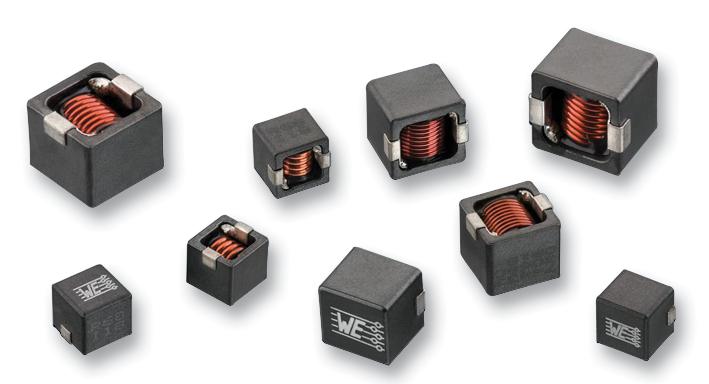

WURTH ELEKTRONIK - 7443330820 - Power Inductor (SMD), 8.2 µH, 11.5 A, Shielded, 8 A, WE-HCC, 10.9mm x 10mm x 9.3mm

  • Inductance: 8.2µH
  • RMS Current (Irms): 11.5A
  • Inductor Construction: Shielded
  • Saturation Current (Isat): 8A
  • Product Range: WE-HCC Series
  • Power Inductor Case: 10.9mm x 10mm x 9.3mm
  • DC Resistance Max: 0.0132ohm
  • Inductance Tolerance: ± 20%
  • SVHC: No SVHC (15-Jan-2019)
  • No. of Pins: 2Pins
  • Resonant Frequency: 36MHz
  • Self Resonant Frequency Min: 36MHz
