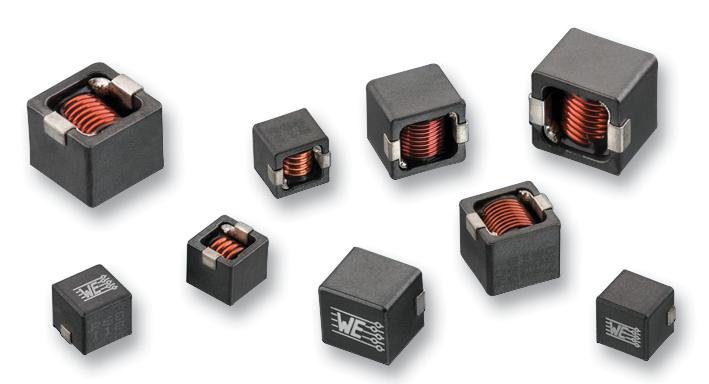

WURTH ELEKTRONIK - 7443320068 - Power Inductor (SMD), 680 nH, 26 A, Shielded, 38 A, WE-HCC
- Inductance: 680nH
- RMS Current (Irms): 26A
- Inductor Construction: Shielded
- Saturation Current (Isat): 38A
- Product Range: WE-HCC Series
- Power Inductor Case: 12.1mm x 11.4mm x 9.5mm
- DC Resistance Max: 0.072ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- No. of Pins: 2Pins
- Resonant Frequency: 108MHz
- Self Resonant Frequency Min: 108MHz
