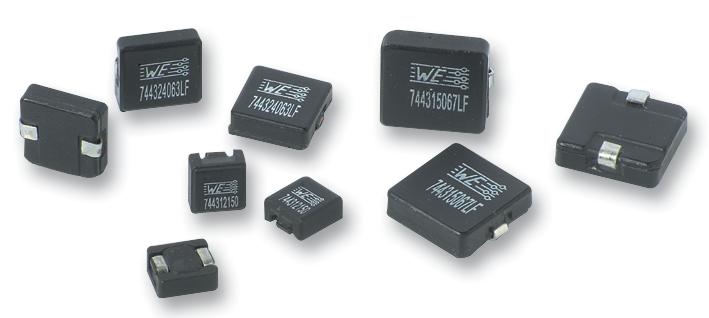

WURTH ELEKTRONIK - 744324063 - Power Inductor (SMD), 620 nH, 18 A, Shielded, 27 A, WE-HCI, 10.5mm x 10mm x 3.9mm
- Inductance: 620nH
- RMS Current (Irms): 18A
- Inductor Construction: Shielded
- Saturation Current (Isat): 27A
- Product Range: WE-HC Series
- Power Inductor Case: 10.5mm x 10mm x 3.9mm
- DC Resistance Max: 0.00345ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- DC Current Rating: 18A
- Inductor Case Style: SMD
- Inductor Type: High Current
- No. of Pins: 2Pins
- Resonant Frequency: 110MHz
- Self Resonant Frequency Min: 110MHz
