744242510 Line Filter, SMD Common Mode 2X51UH Wurth Elektronik

WURTH ELEKTRONIKUGS :744242510 Code de commande:1636265

Prix:
Prix ​​promotionnel€5,59

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2041 unité)

Documents et téléchargements

description

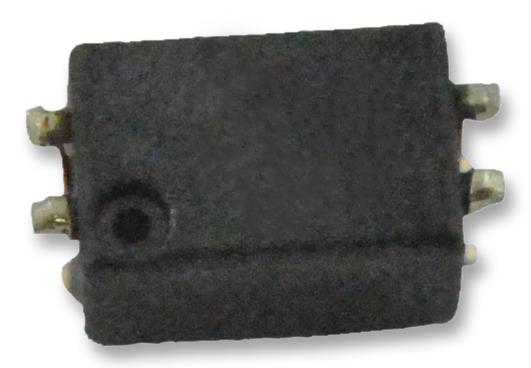

WURTH ELEKTRONIK - 744242510 - Filter, Line, Common Mode, 51 µH, WE-SLM Series, 2.5 kohm, 400 mA, 6mm x 3.3mm x 3.3mm

  • Rated Current: 400mA
  • Inductance: 51µH
  • Product Range: WE-SLM Series
  • Impedance: 2.5kohm
  • Common Mode Filter Case: 6mm x 3.3mm x 3.3mm
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Core Material: Ferrite
  • DC Current Max: 400mA
  • DC Current Rating: 300mA
  • DC Resistance Max: 0.32ohm
  • Inductance Tolerance: -30% to +50%
  • Inductor Case Style: SMD
  • Inductor Type: Common Mode Line Filter
  • No. of Pins: 4Pins
  • Voltage Rating: 80V
