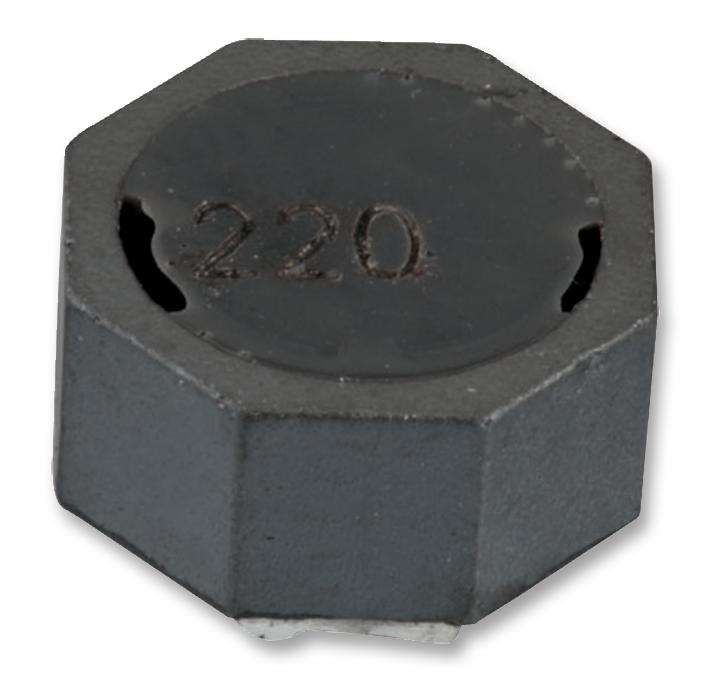

WURTH ELEKTRONIK - 744071022 - Power Inductor (SMD), 2.2 µH, 5.4 A, Shielded, 6.3 A, WE-TPC
- Inductance: 2.2µH
- RMS Current (Irms): 5.4A
- Inductor Construction: Shielded
- Saturation Current (Isat): 6.3A
- Product Range: WE-TPC Series
- Power Inductor Case: 8mm x 8mm x 4.3mm
- DC Resistance Max: 0.013ohm
- Inductance Tolerance: ± 30%
- SVHC: No SVHC (15-Jan-2019)
- Resonant Frequency: 62MHz
- Self Resonant Frequency Min: 62MHz
