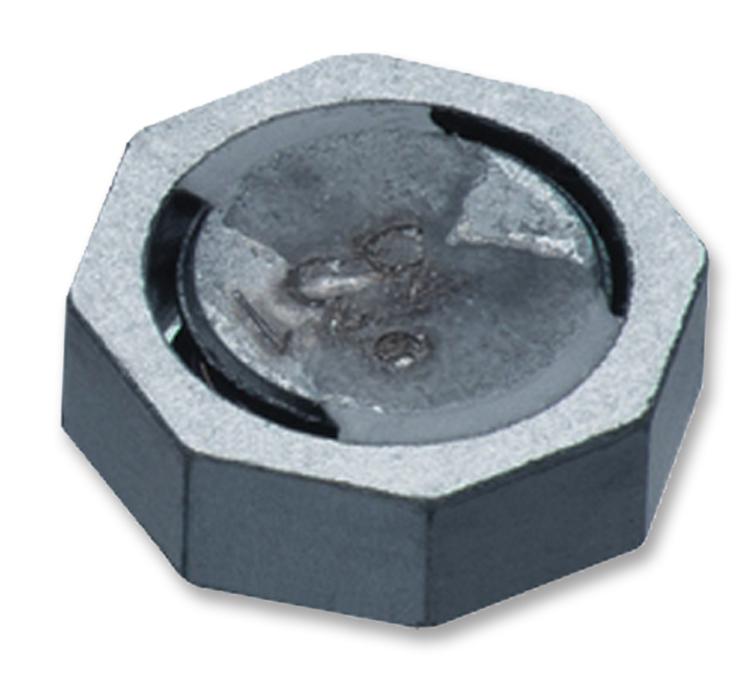

744066331 TPC Inductor 1038, 330UH, Sat=0.7A Wurth Elektronik

WURTH ELEKTRONIKUGS :744066331 Code de commande:2082587

Prix:
Prix ​​promotionnel€3,64

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (180 unité)

Documents et téléchargements

description

WURTH ELEKTRONIK - 744066331 - Power Inductor (SMD), 330 µH, 600 mA, Shielded, 700 mA, WE-TPC, 10mm x 10mm x 3.8mm

  • Inductance: 330µH
  • RMS Current (Irms): 600mA
  • Inductor Construction: Shielded
  • Saturation Current (Isat): 700mA
  • Product Range: WE-TPC Series
  • Power Inductor Case: 10mm x 10mm x 3.8mm
  • DC Resistance Max: 1ohm
  • Inductance Tolerance: ± 30%
  • SVHC: No SVHC (15-Jan-2019)
  • Resonant Frequency: 6MHz
  • Self Resonant Frequency Min: 6MHz
