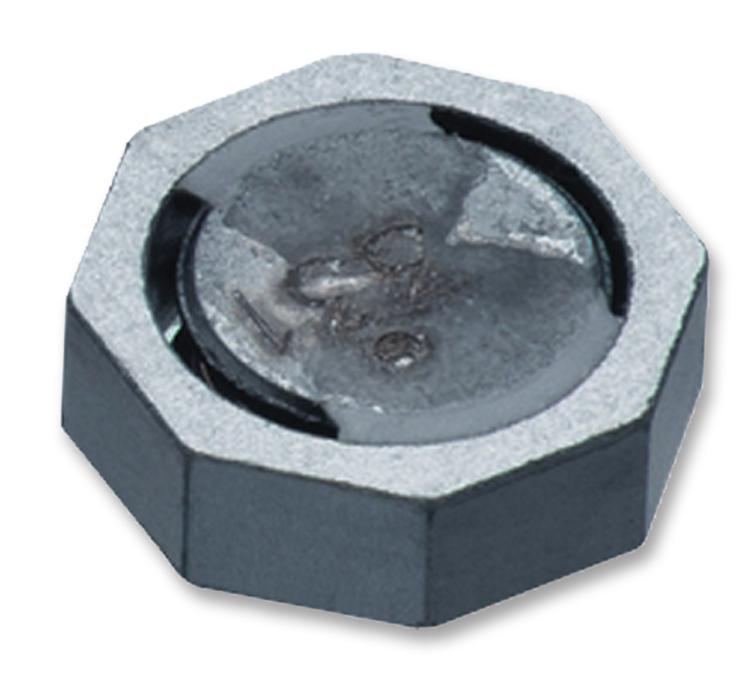

744066330 TPC Inductor 1038, 33UH, Sat=1.8A Wurth Elektronik

WURTH ELEKTRONIKUGS :744066330 Code de commande:2082586

Prix:
Prix ​​promotionnel€3,27

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (791 unité)

Documents et téléchargements

description

WURTH ELEKTRONIK - 744066330 - Power Inductor (SMD), 33 µH, 2.1 A, Shielded, 1.8 A, WE-TPC

  • Inductance: 33µH
  • RMS Current (Irms): 2.1A
  • Inductor Construction: Shielded
  • Saturation Current (Isat): 1.8A
  • Product Range: WE-TPC Series
  • Power Inductor Case: 10mm x 10mm x 3.8mm
  • DC Resistance Max: 0.112ohm
  • Inductance Tolerance: ± 30%
  • SVHC: No SVHC (15-Jan-2019)
  • Resonant Frequency: 10MHz
  • Self Resonant Frequency Min: 10MHz
