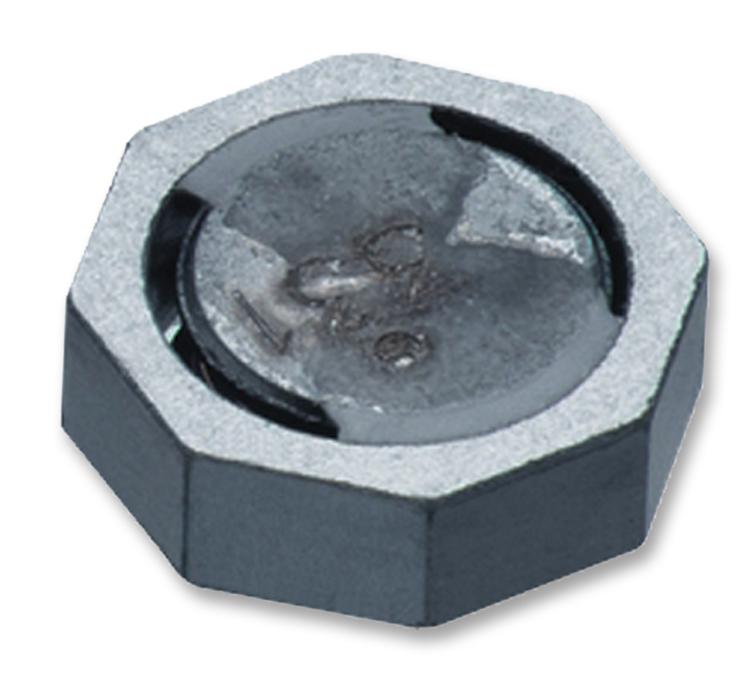

744066151 TPC Inductor 1038, 150UH, Sat=1.1A Wurth Elektronik

WURTH ELEKTRONIKUGS :744066151 Code de commande:2082584

Prix:
Prix ​​promotionnel€3,27

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (835 unité)

Documents et téléchargements

description

WURTH ELEKTRONIK - 744066151 - Power Inductor (SMD), 150 µH, 1 A, Shielded, 1.1 A, WE-TPC

  • Inductance: 150µH
  • RMS Current (Irms): 1A
  • Inductor Construction: Shielded
  • Saturation Current (Isat): 1.1A
  • Product Range: WE-TPC Series
  • Power Inductor Case: 10mm x 10mm x 3.8mm
  • DC Resistance Max: 0.47ohm
  • Inductance Tolerance: ± 30%
  • SVHC: No SVHC (15-Jan-2019)
  • Resonant Frequency: 6MHz
  • Self Resonant Frequency Min: 6MHz
