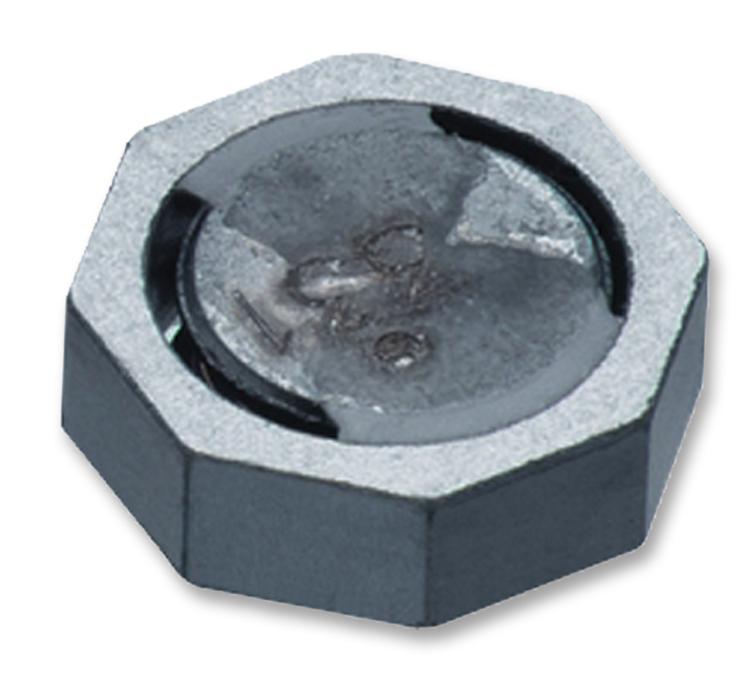

744066150 TPC Inductor 1038, 15UH, Sat=3.25A Wurth Elektronik

WURTH ELEKTRONIKUGS :744066150 Code de commande:2082583

Prix:
Prix ​​promotionnel€3,27

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (91 unité)

Documents et téléchargements

description

WURTH ELEKTRONIK - 744066150 - Power Inductor (SMD), 15 µH, 3.2 A, Shielded, 3.25 A, WE-TPC

  • Inductance: 15µH
  • RMS Current (Irms): 3.2A
  • Inductor Construction: Shielded
  • Saturation Current (Isat): 3.25A
  • Product Range: WE-TPC Series
  • Power Inductor Case: 10mm x 10mm x 3.8mm
  • DC Resistance Max: 0.05ohm
  • Inductance Tolerance: ± 30%
  • SVHC: No SVHC (15-Jan-2019)
  • Resonant Frequency: 16MHz
  • Self Resonant Frequency Min: 16MHz
