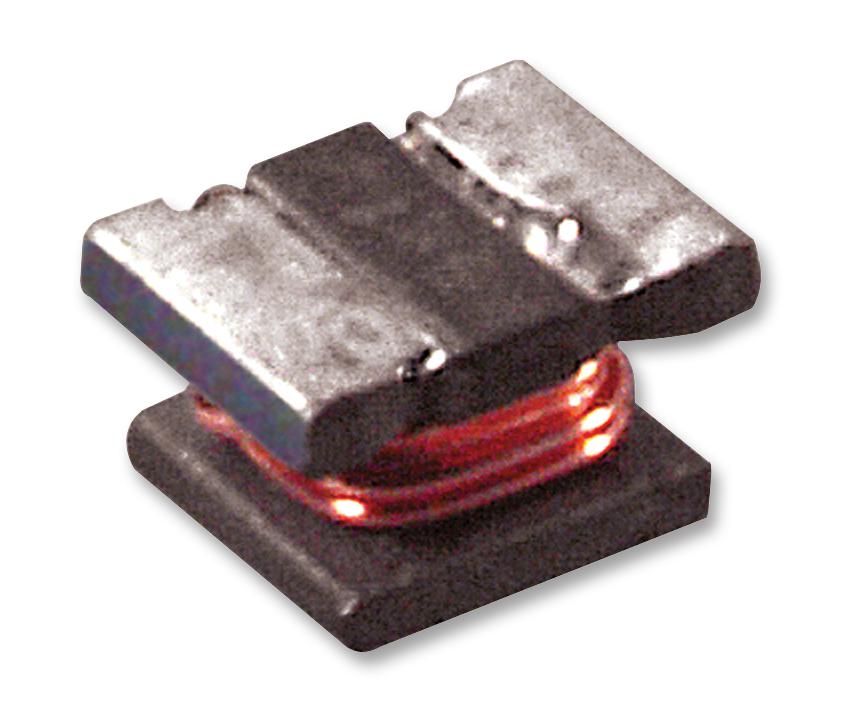

WURTH ELEKTRONIK - 744045215 - Power Inductor (SMD), 150 µH, 220 mA, Unshielded, 420 mA, WE-LQ, 4.5mm x 3.2mm x 2.6mm
- Inductance: 150µH
- RMS Current (Irms): 220mA
- Inductor Construction: Unshielded
- Saturation Current (Isat): 420mA
- Product Range: WE-LQ Series
- Power Inductor Case: 4.5mm x 3.2mm x 2.6mm
- DC Resistance Max: 3.7ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 3.2mm
- External Length / Height: 2.6mm
- External Width: 4.5mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Q Factor: 55
- Q Test Frequency: 1MHz
- Resonant Frequency: 8MHz
- Self Resonant Frequency Min: 8MHz
- Test Frequency: 1MHz
