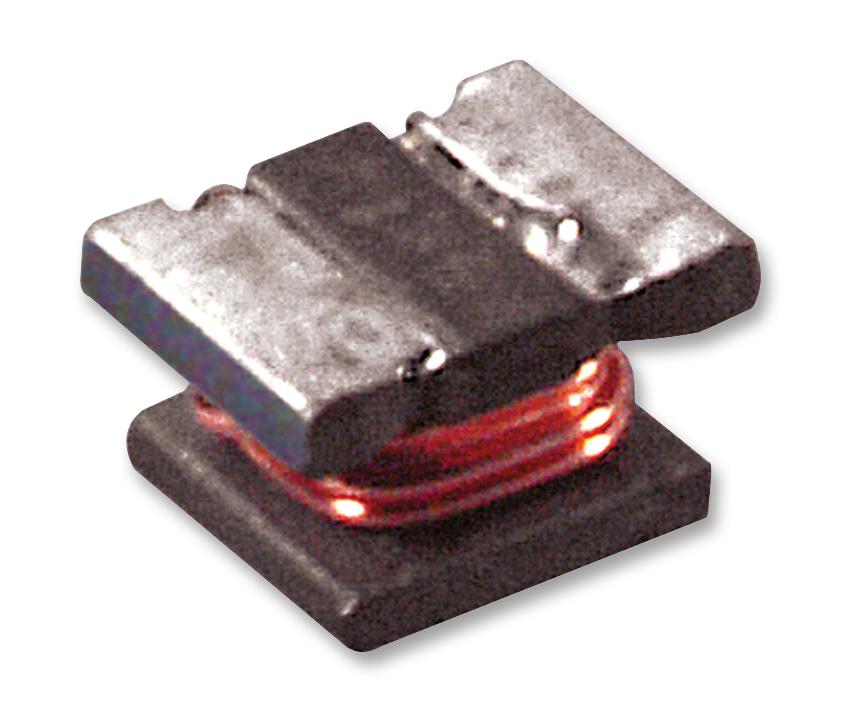

744045102 Inductor, 1000µH, 1812 Case Wurth Elektronik

WURTH ELEKTRONIKUGS :744045102 Code de commande:1800422

Prix:
Prix ​​promotionnel€1,85

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (436 unité)

Documents et téléchargements

description

WURTH ELEKTRONIK - 744045102 - Power Inductor (SMD), 1 mH, 70 mA, Unshielded, 160 mA, WE-LQ

  • Inductance: 1mH
  • RMS Current (Irms): 70mA
  • Inductor Construction: Unshielded
  • Saturation Current (Isat): 160mA
  • Product Range: WE-LQ Series
  • Power Inductor Case: 4.5mm x 3.2mm x 2.6mm
  • DC Resistance Max: 30ohm
  • Inductance Tolerance: ± 10%
  • SVHC: No SVHC (15-Jan-2019)
  • External Depth: 3.2mm
  • External Length / Height: 2.6mm
  • External Width: 4.5mm
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -40°C
  • Q Factor: 28
  • Q Test Frequency: 1MHz
  • Resonant Frequency: 2MHz
  • Self Resonant Frequency Min: 2MHz
  • Test Frequency: 1MHz
