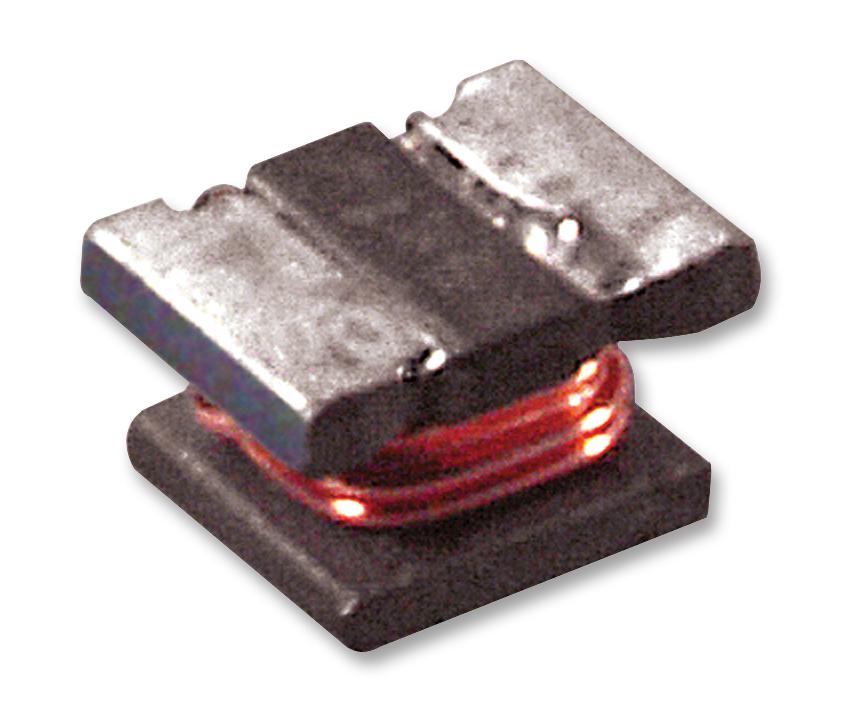

WURTH ELEKTRONIK - 7440320027 - Power Inductor (SMD), 2.7 µH, 600 mA, Unshielded, 1.6 A, WE-LQ
- Inductance: 2.7µH
- RMS Current (Irms): 600mA
- Inductor Construction: Unshielded
- Saturation Current (Isat): 1.6A
- Product Range: WE-LQ Series
- Power Inductor Case: 3.2mm x 2.5mm x 2mm
- DC Resistance Max: 0.18ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 2.5mm
- External Length / Height: 2mm
- External Width: 3.2mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Q Factor: 20
- Q Test Frequency: 1MHz
- Resonant Frequency: 43MHz
- Self Resonant Frequency Min: 43MHz
- Test Frequency: 1MHz
