744028002 Choke, 2.2UH, 1A, SMD Wurth Elektronik

WURTH ELEKTRONIKUGS :744028002 Code de commande:1748585

Prix:
Prix ​​promotionnel€2,41

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (236 unité)

Documents et téléchargements

description

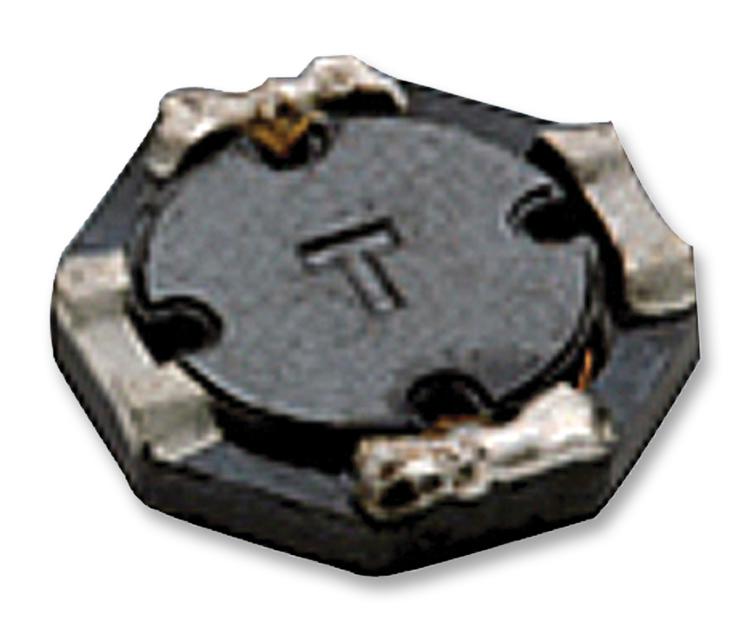

WURTH ELEKTRONIK - 744028002 - Power Inductor (SMD), 2.2 µH, 1.3 A, Shielded, 1 A, WE-TPC

  • Inductance: 2.2µH
  • RMS Current (Irms): 1.3A
  • Inductor Construction: Shielded
  • Saturation Current (Isat): 1A
  • Product Range: WE-TPC Series
  • Power Inductor Case: 2.8mm x 2.8mm x 1.1mm
  • DC Resistance Max: 0.155ohm
  • Inductance Tolerance: ± 30%
  • SVHC: No SVHC (15-Jan-2019)
  • Inductor Type: Power
  • No. of Pins: 2Pins
  • Resonant Frequency: 100MHz
  • Self Resonant Frequency Min: 100MHz
