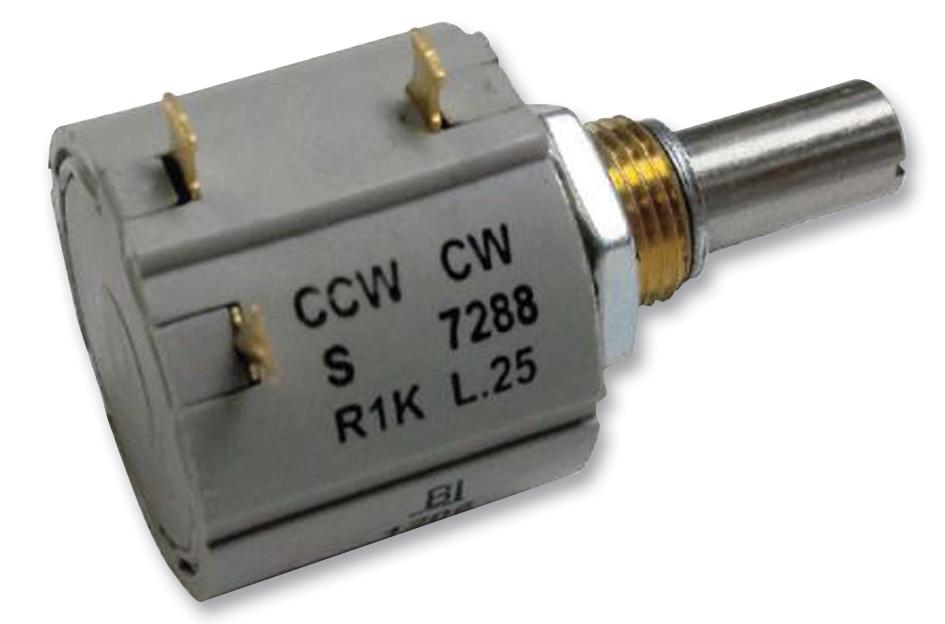

TT ELECTRONICS / BI TECHNOLOGIES - 7286R1KL.25 - Rotary Potentiometer, Wirewound, 1 kohm, 10 Turns, Linear, 2 W, ± 5%, 7286R
- Track Resistance: 1kohm
- No. of Turns: 10Turns
- Track Taper: Linear
- Power Rating: 2W
- Resistance Tolerance: ± 5%
- Product Range: 7286R Series
- Potentiometer Mounting: Bushing
- Shaft Diameter: 6.35mm
- No. of Gangs: 1
- Adjustment Type: Screwdriver Slot
- Shaft Length: 12.7mm
- SVHC: No SVHC (20-Jun-2016)
- Body Diameter: 22.2mm
- Bush Thread Length: 7.93mm
- External Length / Height: 19.1mm
- Insulation Resistance: 1000Mohm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Resistor Element Material: Wirewound
- Temperature Coefficient: ± 20ppm/°C
- Termination Type: Solder
