description

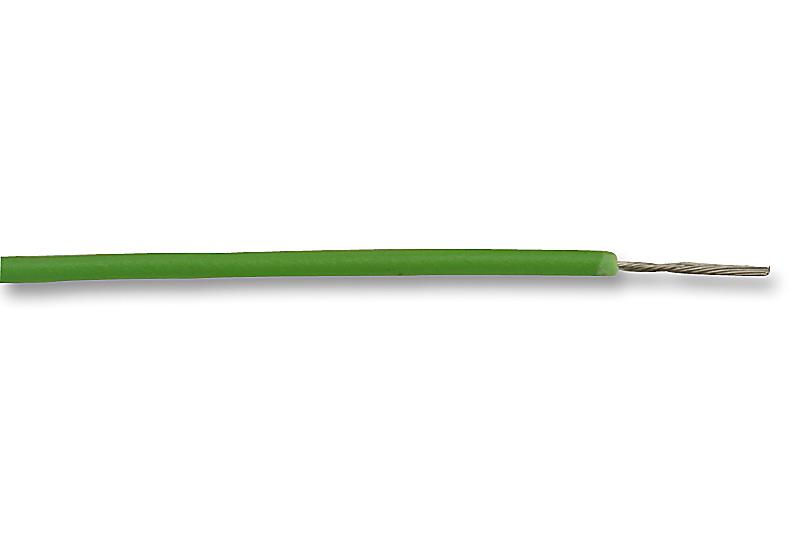

ALPHA WIRE - 7132 GR005 - Wire, Stranded, Hook Up, UL1430, PVC, Green, 20 AWG, 0.562 mm², 100 ft, 30.5 m
- Jacket Material: PVC
- Jacket Colour: Green
- Wire Gauge: 20AWG
- Conductor Area CSA: 0.562mm²
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- No. of Max Strands x Strand Size: 7 x 0.32mm
- Voltage Rating: 300V
- Conductor Material: Copper
- External Diameter: 1.78mm
- Approval Specification: MIL-DTL-16878/2 (Type C), CSA REW XLPVC FT1, UL 1430
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Conductor Make-up: 7 / 28AWG
- Outer Diameter: 1.78mm
- Wire Size: 20AWG
