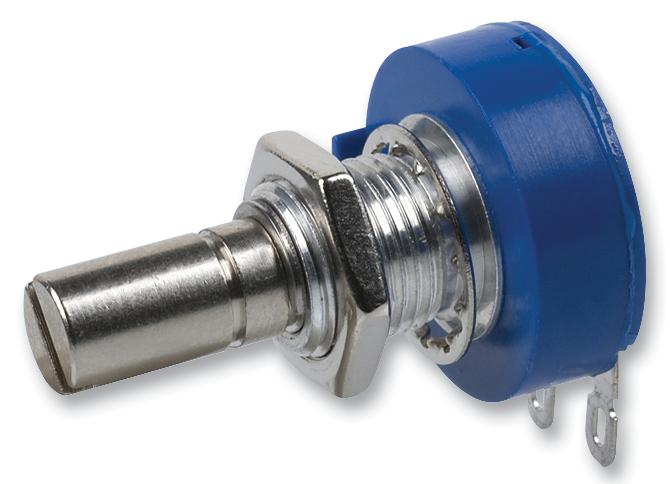

BOURNS - 6637S-1-102 - Rotary Potentiometer, Precision, 1 kohm, 1 Turns, Linear, 1 W, ± 10%, 6637S
- Track Resistance: 1kohm
- No. of Turns: 1Turns
- Track Taper: Linear
- Power Rating: 1W
- Resistance Tolerance: ± 10%
- Product Range: 6637S Series
- Potentiometer Mounting: Bushing
- Shaft Diameter: 3.17mm
- No. of Gangs: 1
- Adjustment Type: Screwdriver Slot
- Shaft Length: 22.23mm
- SVHC: Lead (15-Jan-2019)
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +125°C
- Resistor Element Material: Conductive Plastic
- Temperature Coefficient: ± 500ppm/°C
- Termination Type: Solder
- Voltage Rating: 300VAC
