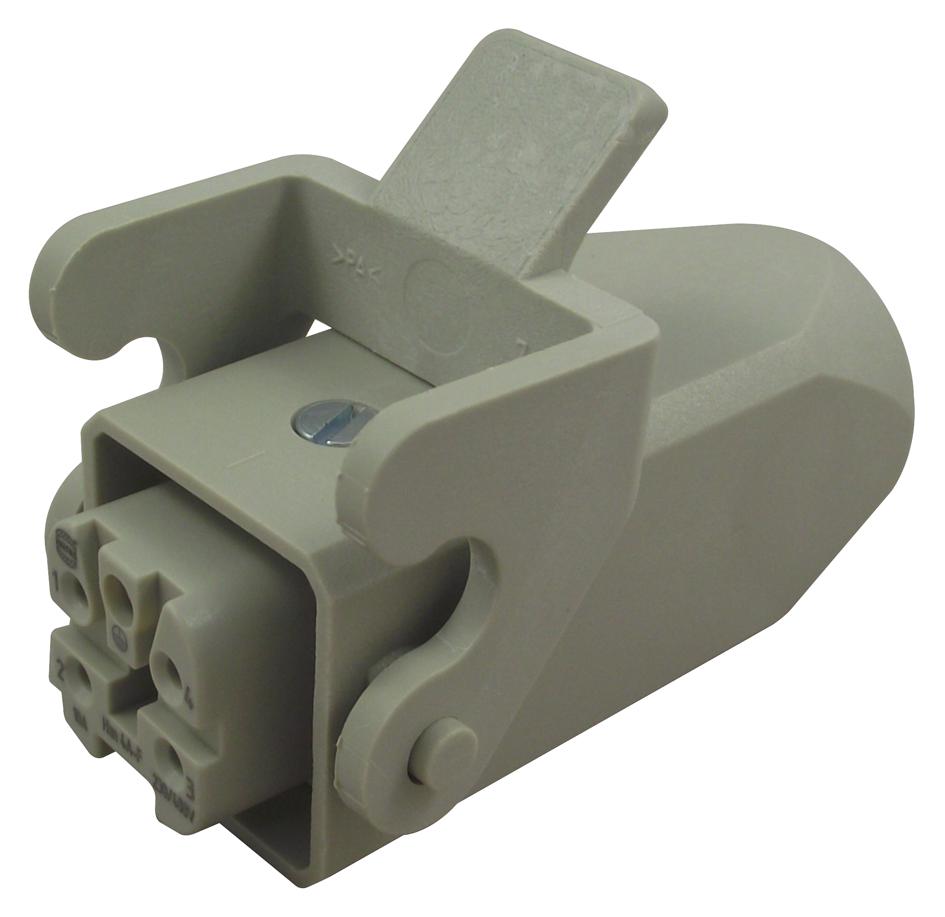

HARTING - 66 30 226 001000 - Heavy Duty Connector, Hood & Insert, Han Series, Panel Mount, Receptacle, 4 Contacts, Socket
- Product Range: Han Series
- Connector Mounting: Panel Mount
- Gender: Receptacle
- No. of Contacts: 4Contacts
- Contact Gender: Socket
- No. of Rows: 2Rows
- Contact Termination Type: Screw
- Connector Shell Size: 4A
- Contact Material: Copper
- Contact Plating: -
- SVHC: No SVHC (15-Jan-2018)
- Conduit Thread Size: M20
- Connector Type: Rectangular Power
- Contact Resistance: 1mohm
- Contact Termination: Screw
- Current Rating: 10A
- IP / NEMA Rating: IP65
- Material: Polycarbonate RAL 7032
- No. of Mating Cycles: 500
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Termination Method: Screw
- Voltage Rating VAC: 600V
- Wire Area Size Max: 2.5mm²
- Wire Area Size Min: 1mm²
- Wire Size AWG Max: 12AWG
- Wire Size AWG Min: 20AWG
- Working Voltage: 400V
