description

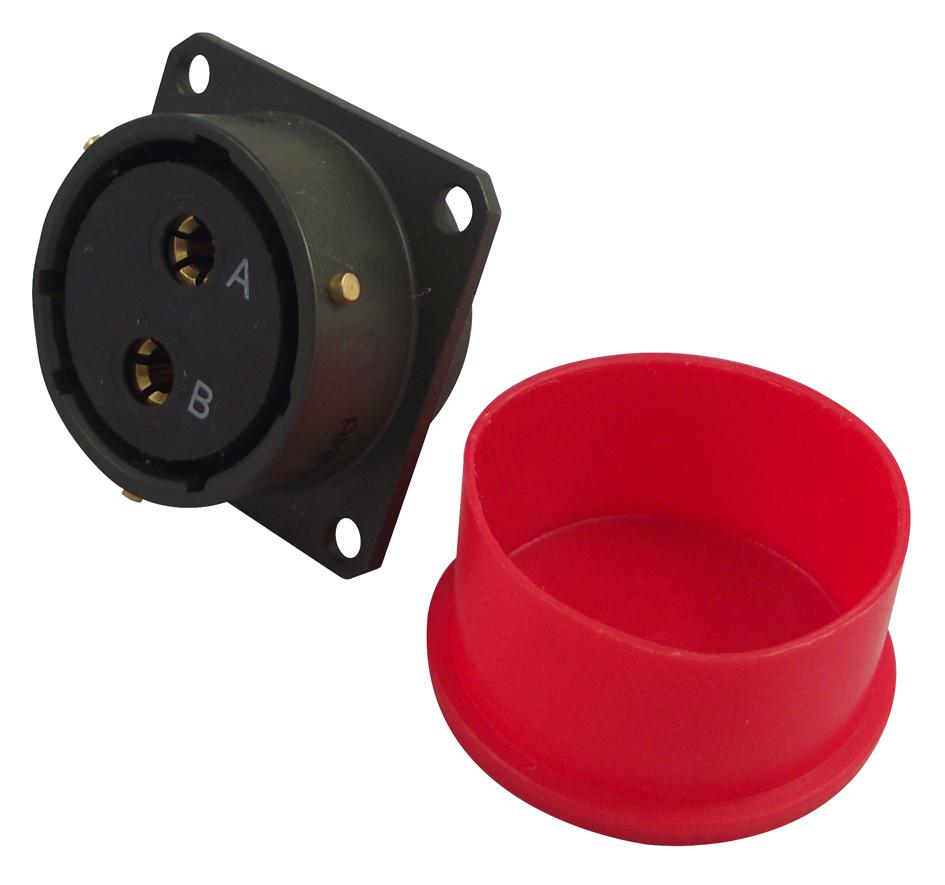

AMPHENOL LTD - 62GB-12E18-02SN - Circular Connector, 62GB, Box Mount Receptacle, 2 Contacts, Solder Socket, Bayonet, 18-2
- Product Range: 62GB Series
- Circular Connector Shell Style: Box Mount Receptacle
- No. of Contacts: 2Contacts
- Circular Contact Type: Solder Socket
- Coupling Style: Bayonet
- Insert Arrangement: 18-2
- Connector Body Material: Aluminium Alloy Body
- Connector Body Plating: Olive Drab Zinc
- Contact Material: Copper Alloy
- Contact Plating: Gold
- Insert Rotation: N
- Service Class: Environmentally Sealed
- Equivalent Military Specification: MIL-DTL-26482 Series
- SVHC: No SVHC (15-Jun-2015)
- Approval Category: MIL-C-26482
- Current Rating: 45A
- IP / NEMA Rating: IP67
- Voltage Rating VAC: 500V
